ARC 1100 55mm Rear Disc Wheel

Sale price$1,999.00 AUD
In stock

Upgrading your wheels to the fast, carbon DT Swiss Arc 1100 wheels will transform your ride! Read More

Enquire Now

Interested in the DT SWISS ARC 1100 55mm Rear Disc Wheel? Get in touch to find out more!

Pickup available at Bike Force Joondalup

Usually ready in 24 hours. Bikes may need additional time for assembly.

DT Swiss bicycle wheel on a white background

ARC 1100 55mm Rear Disc Wheel

Bike Force Joondalup

Pickup available, Usually ready in 24 hours. Bikes may need additional time for assembly.

Unit 8/162 Winton Road
Joondalup WA 6027
Australia

+6193011050

Description

Ride the fastest ARC wheelset on Zwift! Experience the speed of the fastest ARC Aero wheels in Zwift: The ARC 1100 DICUT DISC rear wheel is available in the “Drop Shop”. In combination with the ARC 1100 DICUT 85 front wheel, this wheelset will lead you to new PB in the game on flat and slightly undulating courses and segments – just like in the real world.

Being a leader is not for the faint of heart. The third generation of ARC reaches a new peak of innovation, with wider inner rim width, now 22 mm, that ideally supports wider tyres providing you with grip and comfort. You will be able to storm ahead with enhanced speed over a long period. Three different rim heights, 55, 65, 85 mm, with a unique v-shape allow for a wider inner width without compromising aerodynamics and weight. Combining light weight and aero-optimization for a swift rise to the top. The top-of-the-line 180 DICUT hub with Ratchet EXP System and SINC ceramic bearings, as well as DT aerolite II spokes are the final ingredients needed to cross the finish line first. Join our mission to improve, to keep striving, to get ahead. The lead is taken, not given.

How can I prevent heat damage on my carbon wheels?

At temperatures of 200 degrees, carbon will start to wave and lose its stability.The exhaust gases from a car can be up to 500 degrees Celsius. When transporting your carbon wheel with a rear carrier, make sure that there is sufficient distance to avoid such defects!

Specifications

General

Net Weight
793g
Recommended System Weight Max.
110kg
ASTM Classification
1
Approved For E-Bikes
No

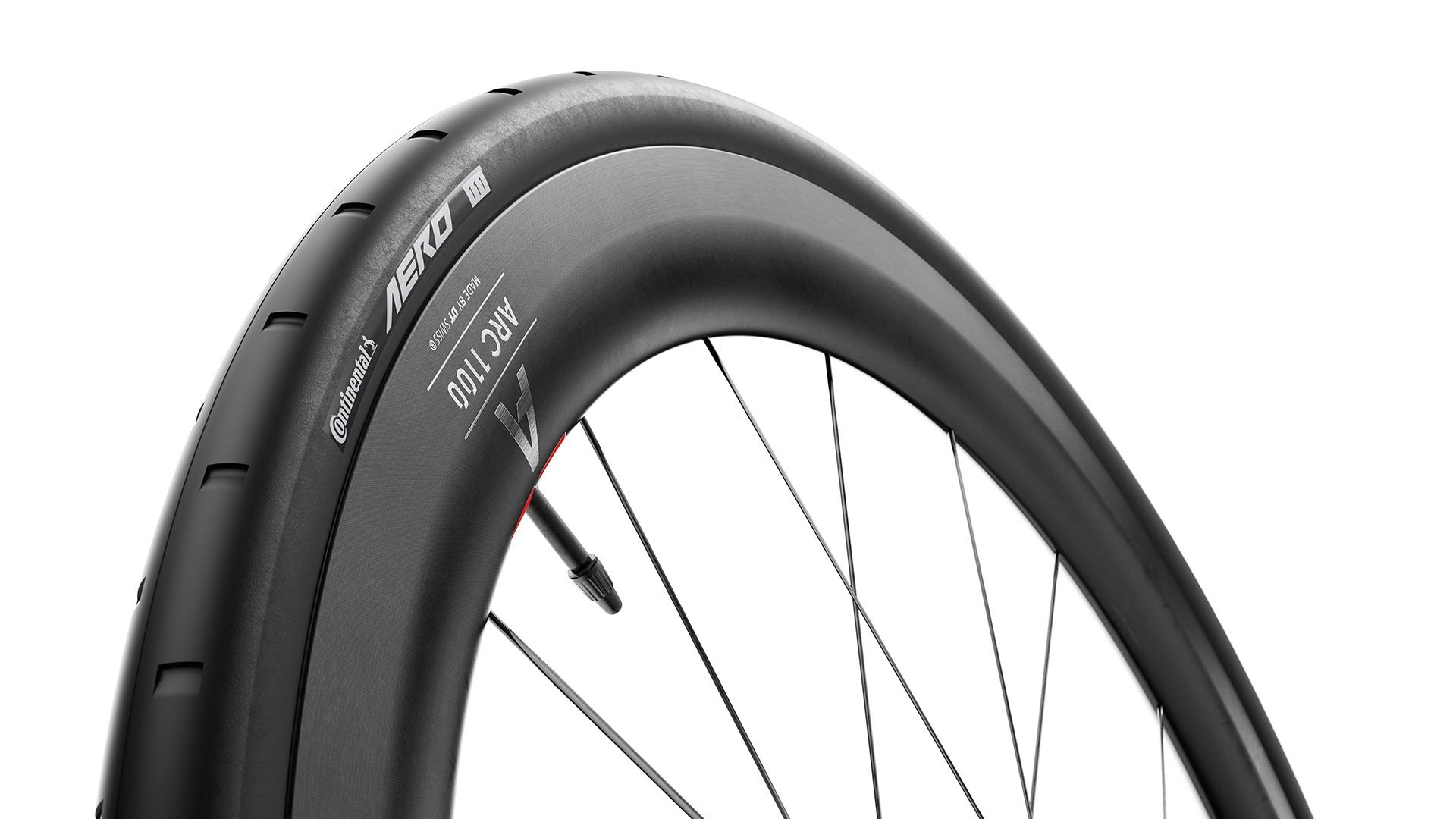

Rim

Material
Carbon
Tyre Interface
Hooked/Crotchet Tubeless TC
Hooked or crotchet refers to the shape of the rim flange. In this variant, the rim flange has a so-called hook. This supports the fixation of the tire bead and ensures safe function, also in high pressure use cases (>5 bar tire pressure). Tubeless refers to the ability of the rim to be used without a tube, but a tube set up is also possible.

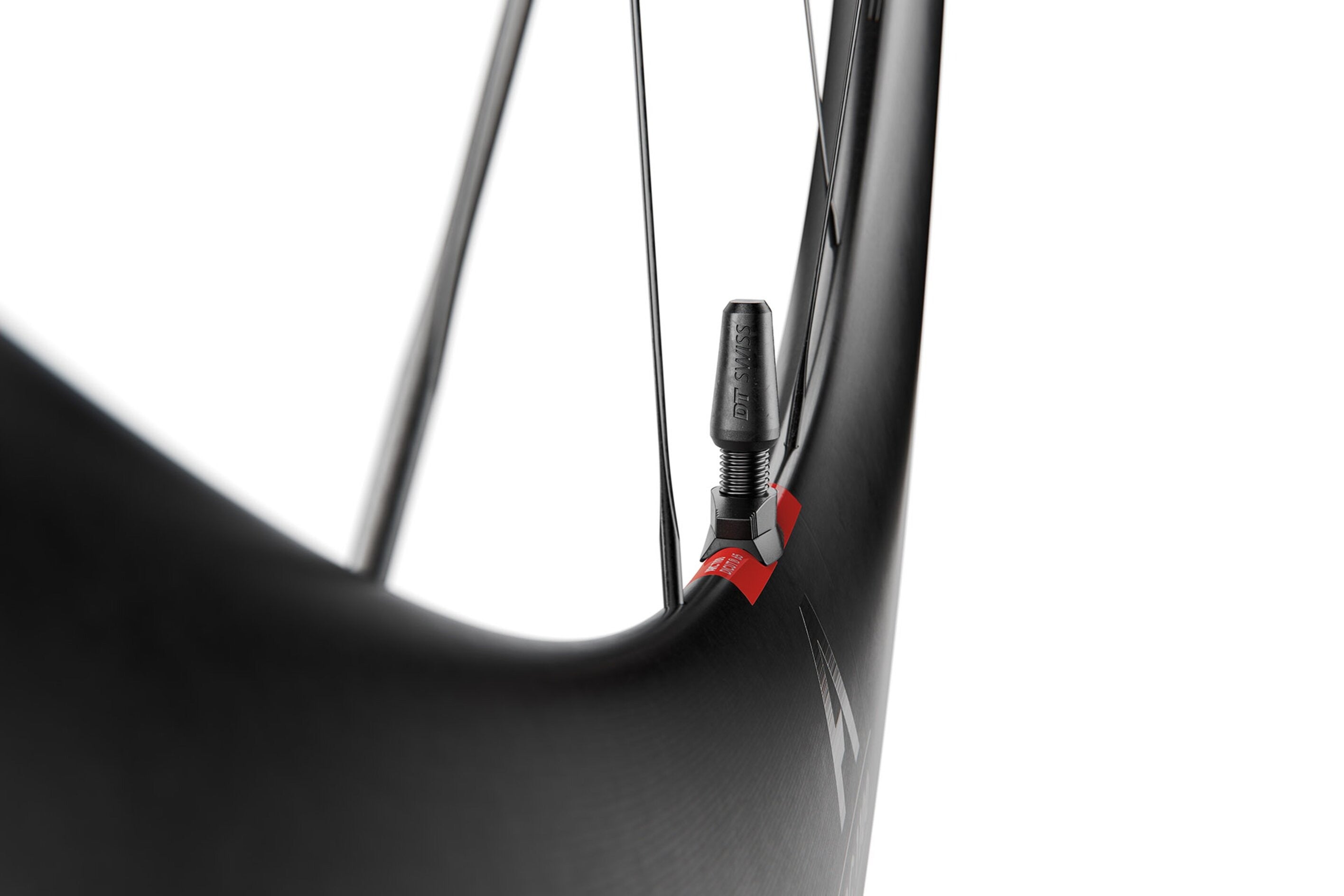

Valve Hole
Presta
Rim Diameter
29"/700C
Rim Height
55mm
Inner Width
22mm
Outer Width
28mm

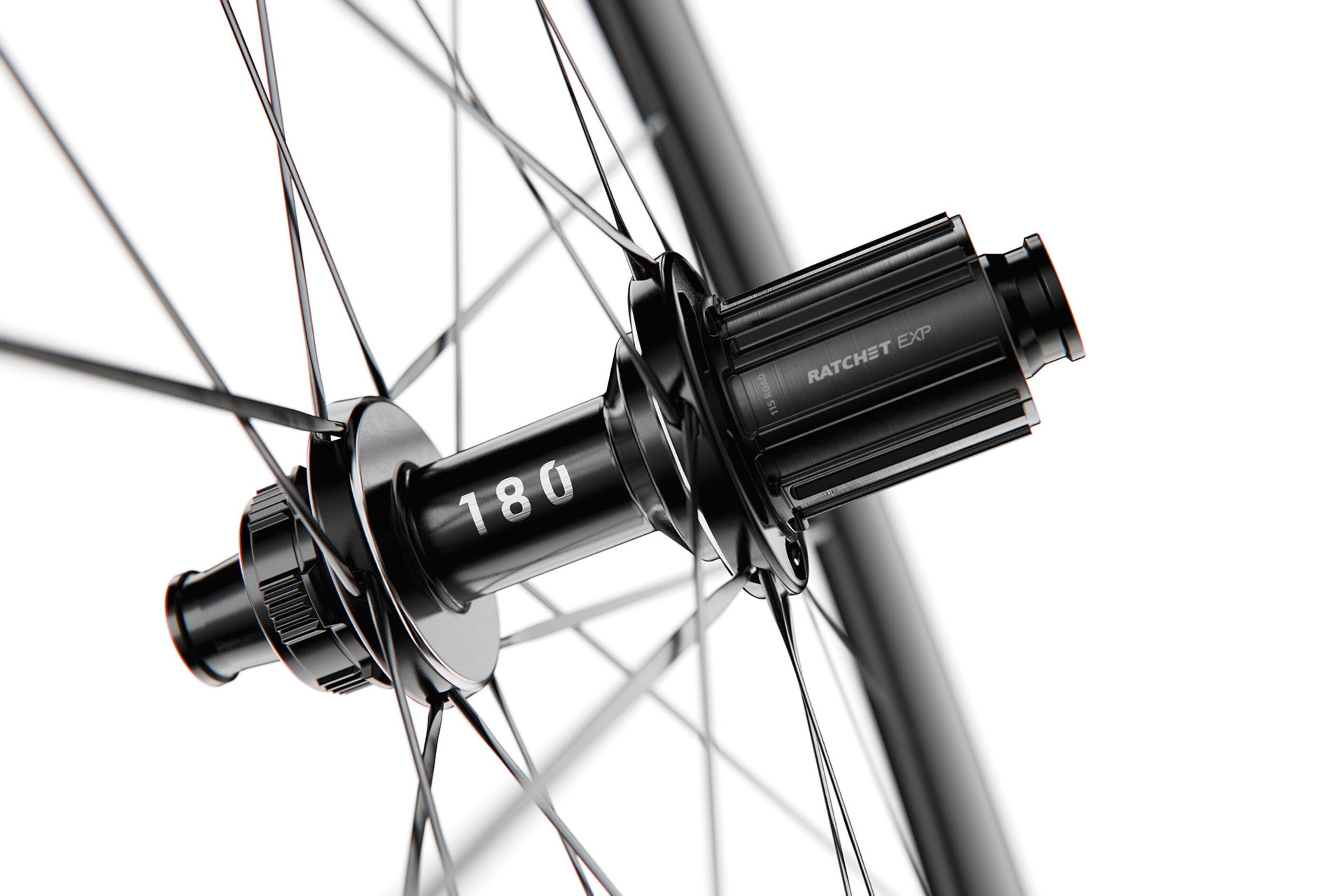

Hub

Hub Type
180
Built-In-Dimension
142mm
Axle System
12mm Thru Axle
Thru-axle refers to a wheel mounting system. RWS technology from DT Swiss allows quick, precise mounting simply by turning an easily adjustable lever. Thru-axle systems guarantee a rigid and secure connection between the wheel and the frame. Thru-axles must be compatible with the frame and fork because the built-in-width, diameter and thread of the axle vary and are defined by the frame and fork manufacturer.
Brake Interface
Disc Center Lock
Center Lock refers to a system for brake discs that was developed by Shimano. The brake disc is mounted on the hub by means of an external spline and screwing on a lock ring. The advantage of the Center Lock system is that the brake discs are centered and mounting requires only screwing down a single lock ring.
Cassette Interface
Shimano Road
Freehub Body
Shimano RD. 11SP Light S ASLS11
Completely machined aluminum freehub body for Shimano 11-speed road bike cassettes. Visit the brand website for more details about the compatibility of the freehub bodies.
Freehub System
Ratchet EXP 36

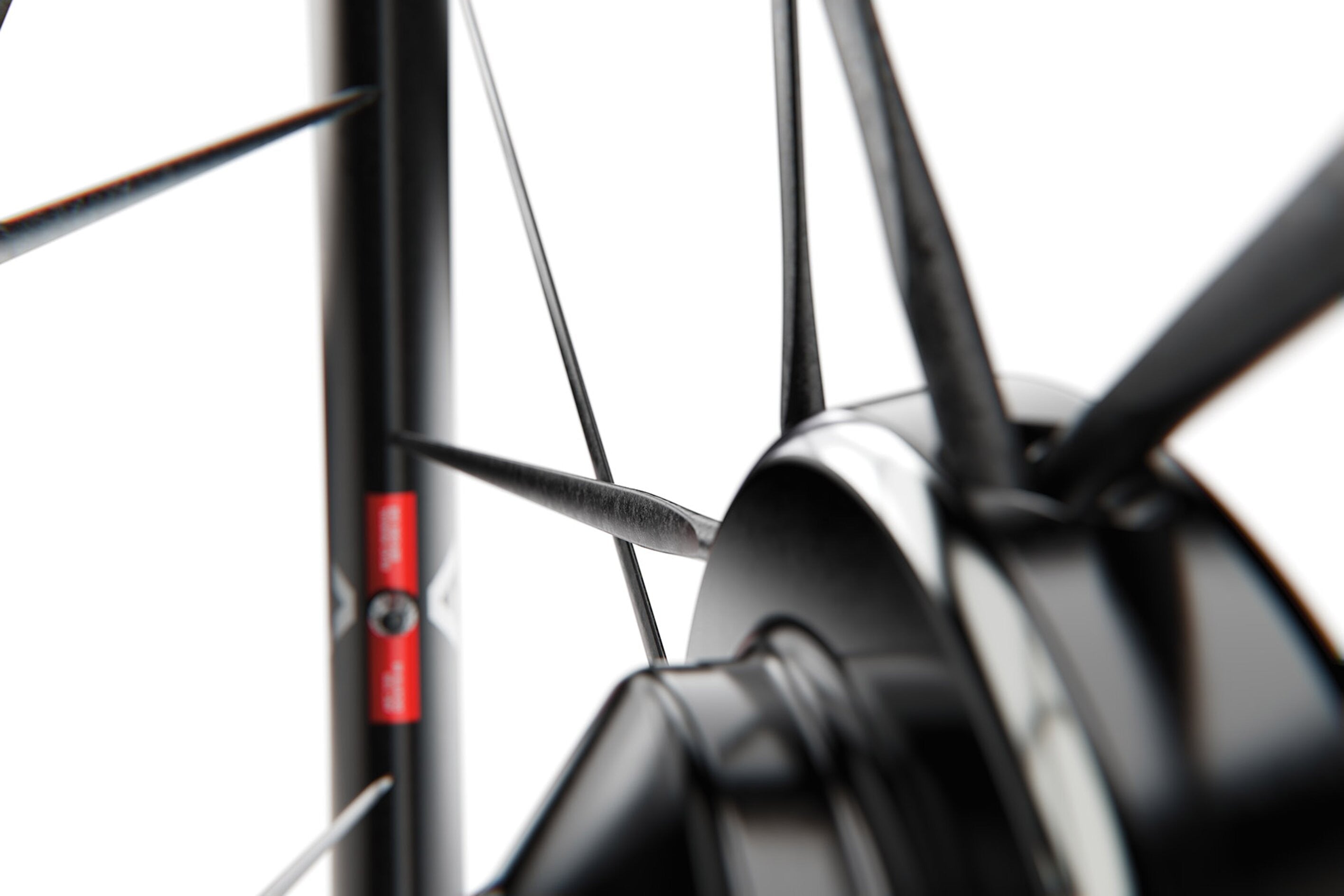

Spokes & Nipples

Spokes Left
DT aerolite® II t-head
Spokes Right
DT aerolite® II t-head
Spokes Pattern
Two-cross (1:1)
Nipples
DT Pro Lock hidden aluminum
Pro Lock is a thread lock function which prevents the spoke-nipple connection from loosening, allowing for extremely durable wheel builds.
