Asura 22.7TT 26" Dirt Jumper Bike

The Asura features a lightweight but tough chromoly/steel frame, along with a 100mm travel fork and stacked list of Radio, RST and Tektro components that make a fun and exciting 26” machine which you won’t be able to put down. Ready for serious all-terrain fun on the streets, jumps and pumptracks.

Specs

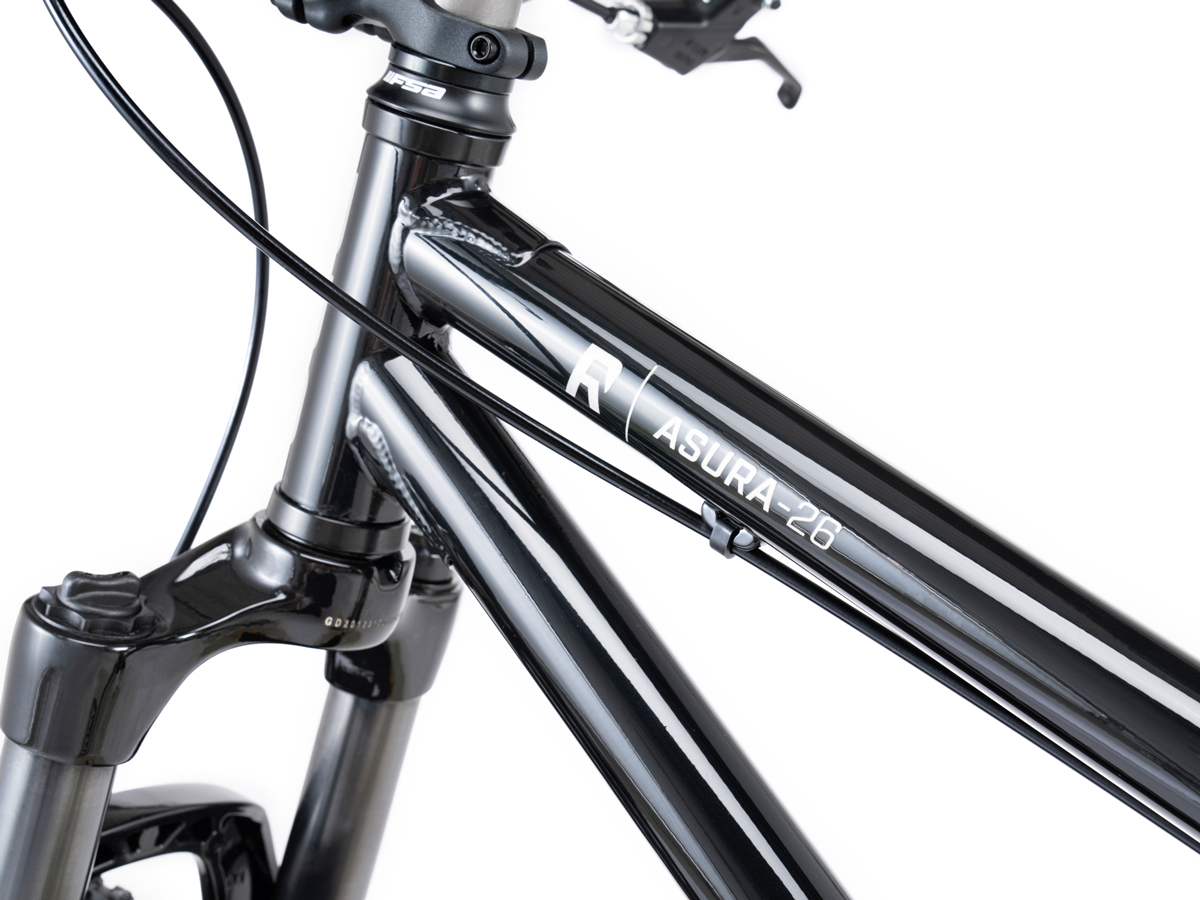

Frame - Radio 'Asura' frame, Cr-Mo top tube & down tube, 1020 hi-ten
Fork - RST 'Dirt RA' 100mm travel

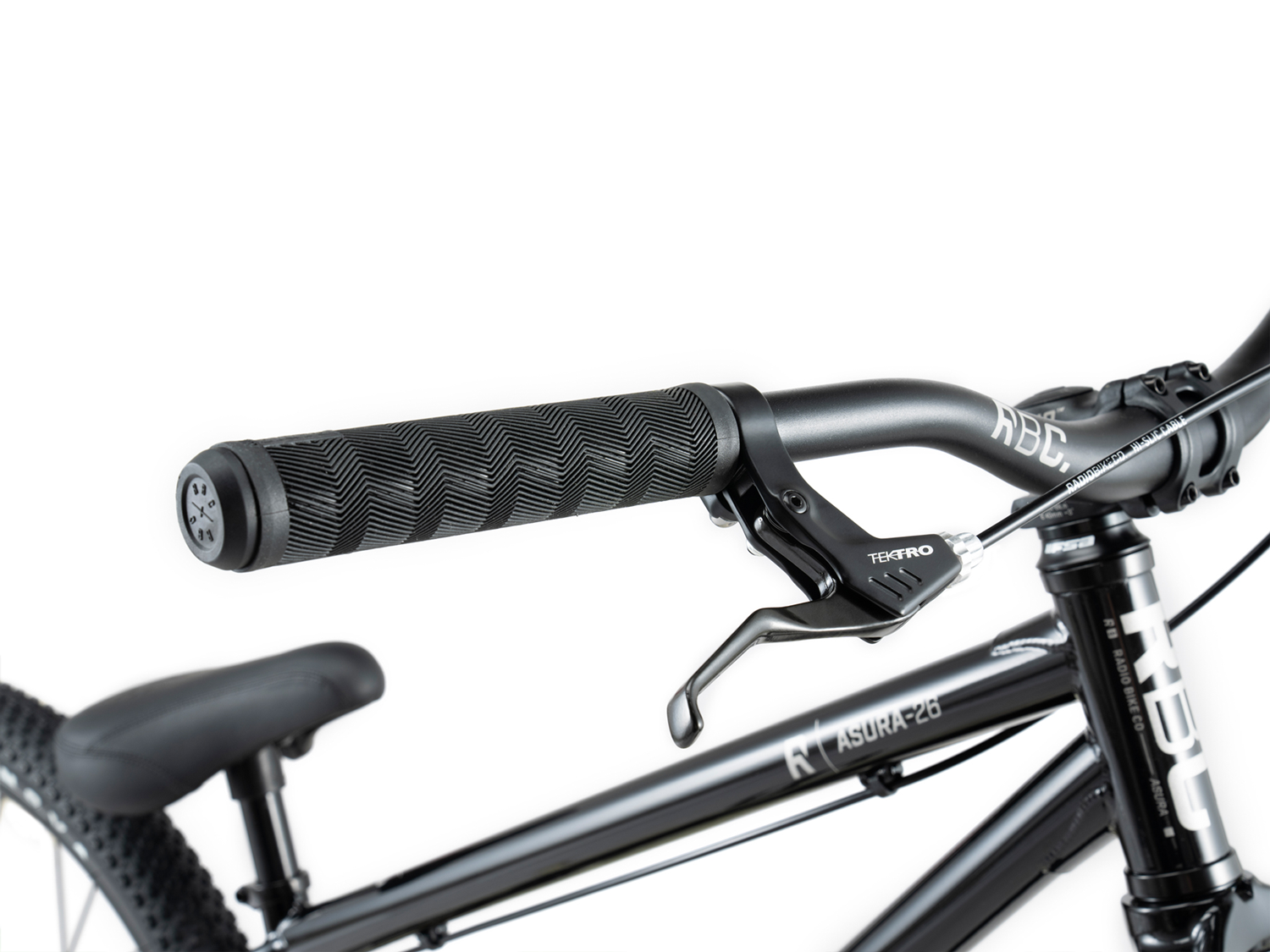

Handlebar- Radio 'Asura' bar, 6061-T6 alloy, 31.8mm
Grips - Radio 'Frequency XL' grips, flangeless, 160mm
Stem - Radio 'Zoom' frontload stem, alloy, 40mm reach
Headset - FSA No.28 a-headset
Brake lever - Tektro 'RS-360A', front & rear
Brake - Tektro 'Aries' mechanical disc brake, 160mm rotor, front & rear
Crank - Radio 'Pro' tubular 3pc crank Cr-Mo, 170mm, 8 spline
BB - Mid size, press fit, sealed bearing
Pedals - Radio 'Slim' nylon fibreglass pedals
Chain - Salt 'AM' chain, WZ1 type

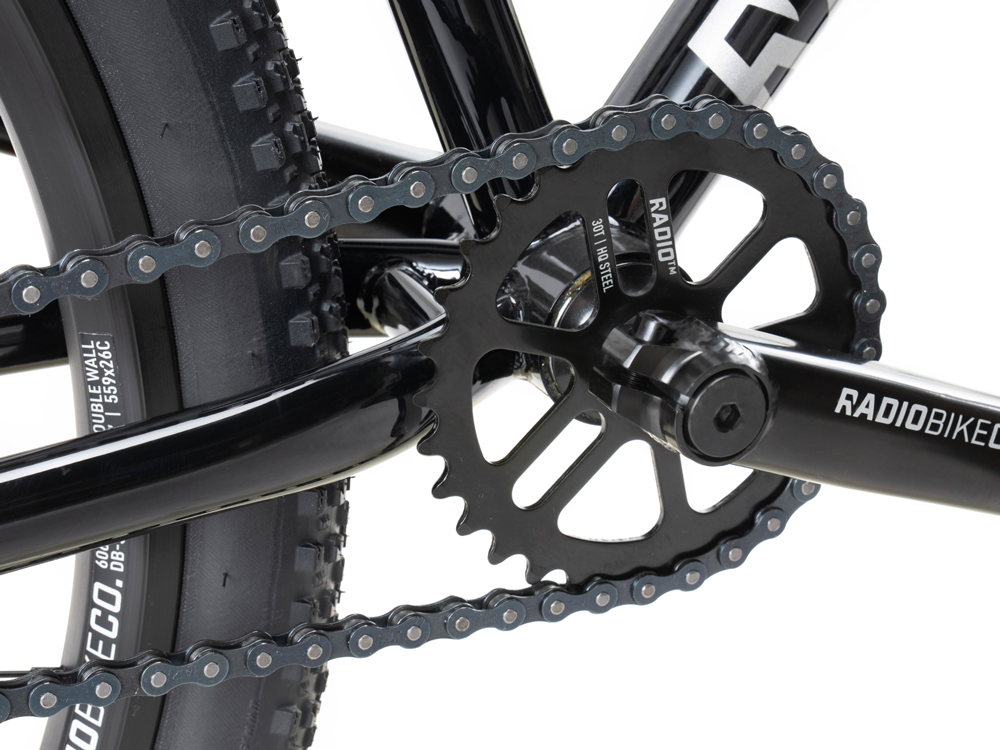

Sprocket - Radio 'Rookie' steel, 30T
Driver - ATA 14T Cr-Mo freewheel
Front hub - Radio 'Rookie-Dj' disc hub, alloy, loose ball, 3/8″S Cr-Mo axle, 32H
Rear hub - Radio 'Rookie-Dj' disc hub, alloy, sealed, 3/8″S Cr-Mo axle, 32H
Front rim - Radio 'DB32 rim', double wall
Rear rim - Radio 'DB32 rim', double wall

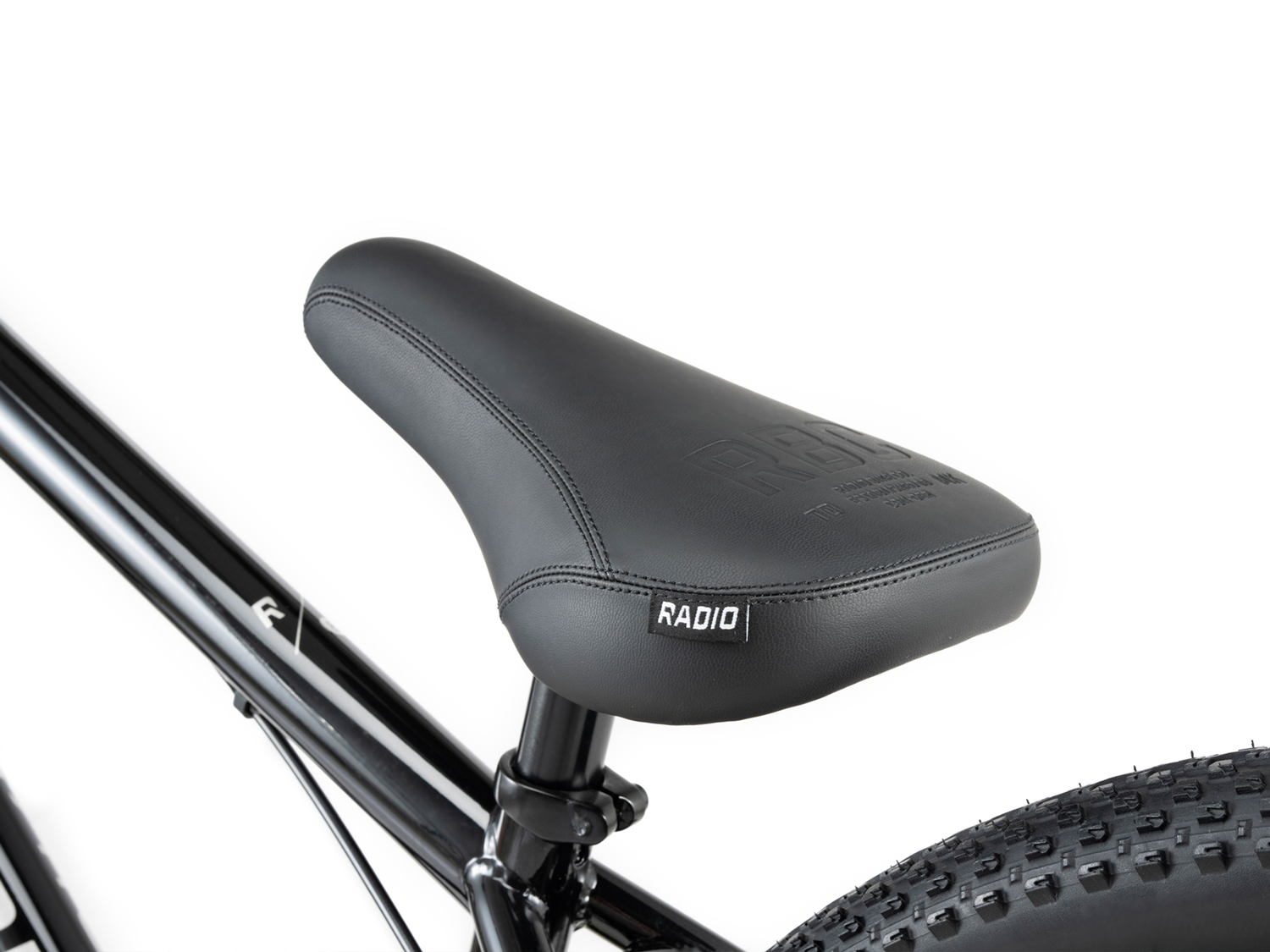

Seat - Radio 'Dj medium' padded combo seat
Seat clamp - Radio 'Dj' combo seat, medium padded
Tyres - Radio 'Dj1131' tyres, 2.0”, front & rear
Weight - 14.04kg / 30.89lbs

Frame geometry
Top tube length - 22.7″
Chain stay length - 15.5″
Head tube angle - 70°
Seat tube angle - 72.5°
Bottom bracket height - 4mm drop
Standover height - 10.5″

Handlebar geometry
Rise - 50mm
Width - 740mm
Backsweep - 8°
Upsweep - 3°
