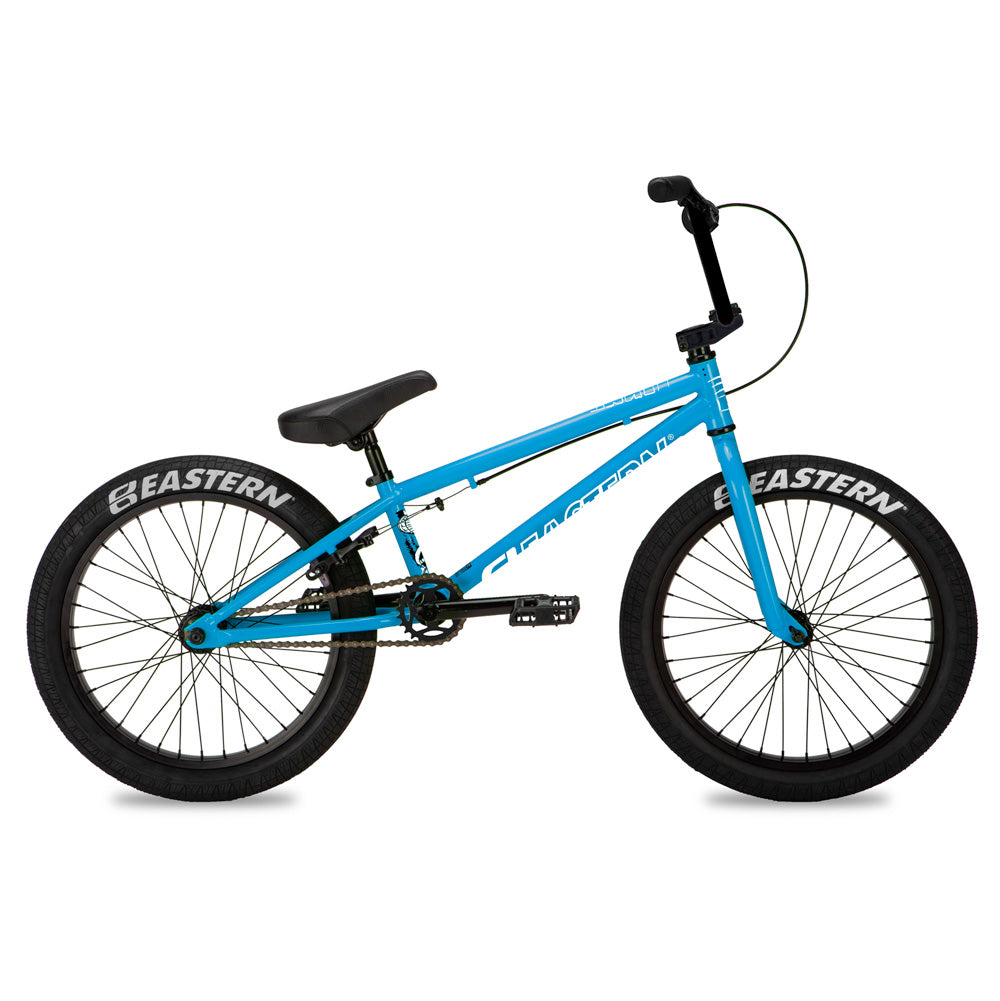

Cobra BMX Bike

The durable Cobra 20" BMX bike is built with sealed front and rear hubs for less maintenance and a smooth ride. The Atom series 3-piece tubular chromoly cranks, aftermarket Eastern Riblet grips, Atom pedals, and Eastern tyres give it that pro look and feel. Designed with a strong hi-tensile steel frame for long-lasting durability.

Features

• Now with Sealed Rear Hub
• 3pc Tubular Chromoly Cranks
• Hi-Tensile Steel Frame
• Chromoly Steerer Tube
• Hi-Tensile Steel Fork and Bars
• Eastern Riblet Grips
• Eastern Atom Pedals
• Eastern Sprocket

Specs

FRAME

Hi Tensile Steel Cobra 20"

Top Tube Size: 20"

BB: AM Loose Ball

Headtube: Aheadset

Chainstay Length: 13.38"

Clamp: Integrated with Frame

BARS

Hi-Ten 8.25"

FORK

Cobra - Chromoly Steerer with Hi-tensile steel Tapered legs, 3/8" dropouts

Fork Rake: 28mm

HEADSET Aheadset

STEM Forged Alloy Top Load Stem

GRIP Eastern Riblet Grips

CRANK 3-Piece, Tubular Heat-Treated Chromoly, Bolt for Sprocket, Pinch Bolt with 8-Splined Spindle,  170mm 28.6mm Round Arm

BOTTOM BRACKET American Ball Bearing

CHAINWHEEL Eastern Phorcys, Cold Hard Steel, 25T

CHAIN KMC Z510 1/2 x 1/8

PEDAL Eastern Atom Plastic Pedal with 9/16" Axle

FRONT BRAKE N/A

FRONT LEVER N/A

REAR BRAKE U-Brake, Forged Alloy, Wide Body, Clear Brake Pads

REAR LEVER Forged Alloy Lever

BRAKE CABLE [S] LINEAR

SADDLE Padded Seat with Railed Supports

POST Steel 200mm

FRONT HUB Loose Ball, Forged Alloy Shell, Drilled for 36 Spokes, 3/8" Chromoly Axle

REAR HUB Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle

FREEWHEEL 9 Tooth Sealed Driver with Hub

FRONT RIM Alloy, Single Wall, Drilled for 36 Spokes. For 20" Tires

REAR RIM Alloy, Single Wall, Drilled for 36 Spokes. For 20" Tires

SPOKES 14 Gauge with Brass Nipples

FRONT TYRE 20 x 2.25

REAR TYRE 20 x 2.25
