Dirt 500 Dirt Jump Bike

Sale price$1,599.00 AUD
Included Service Plan

Every bike we sell includes a 3-year service plan!
Learn More

Assembled & Ready to Ride

All our bikes are assembled by a professional and thoroughly checked, ready to ride!

Only 1 unit left

The Merida 500 Dirt Jump Bike is ready for some serious dirt jump tricks. It is designed for the adrenaline junkie! Read More
Color: Grey/Green
Size: Medium

Size

Enquire Now

Interested in the Merida Dirt 500 Dirt Jump Bike? Get in touch to find out more!

Pickup available at Bike Force Joondalup

Usually ready in 24 hours. Bikes may need additional time for assembly.

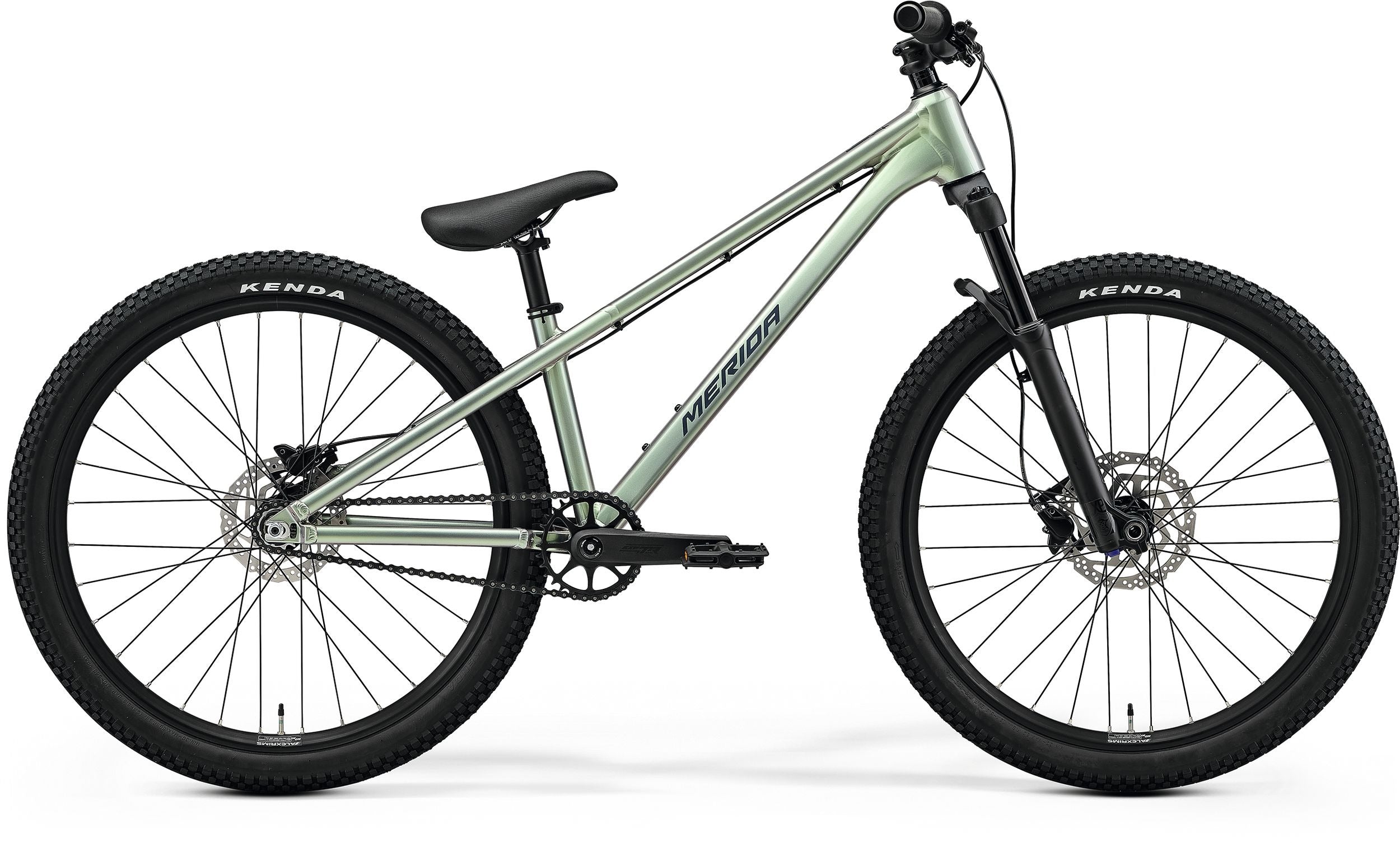

Green Merida Dirt Jump Bike on a white background

Dirt 500 Dirt Jump Bike

Grey/Green / Medium

Bike Force Joondalup

Pickup available, Usually ready in 24 hours. Bikes may need additional time for assembly.

Unit 8/162 Winton Road
Joondalup WA 6027
Australia

+6193011050

Description

Ready for the pump track and the dirt jump trails, but a whole load of fun anywhere you take it. Our tough aluminium frame is paired with 26" wheels, a tough and simple to maintain singlespeed drivetrain and kit that punches above its weight.

Our new dirt jump and pump track bike won't break the budget - or break, full stop. Built tough from 6061 aluminium, it's got 26" wheels and a singlespeed setup for bombproof reliability. Designed to deliver the most fun for your money, a Manitou Circus 100 mm fork will save your hands when you case it, while tough Alex rims and fast Kenda tyres are ready to rip pump track berms. Chuck in Shimano hydraulic disc brakes and while it is built for big air it's a surprisingly versatile fun machine.

DIRT simple, DIRT tough. Whether you’re pushing for progression on dirt jumps, playing on the pumptrack or just want a bombproof hardtail buddy, the new MERIDA DIRT has you covered. Built for big air, pump tracks, tricks and generally giving it some stick, our new play hardtail has been created to take a beating and come back for more, with a tough but simple singlespeed aluminium frame, 26” wheels and components that can take a kicking on the regular. Designed to round out our gravity-bike range, it’s the perfect playtime partner for riders that want to sharpen up their skills or who want to kick off their dirt-riding career with a tough, more stylish option than a regular MTB hardtail.

Features

  • Tough 6061 aluminium frame with ability to run standard gyro
  • Incredibly agile and tough 26" wheels with singlespeed gearing for simplicity
  • Dirt-jump specific Manitou Circus 100 mm fork with 20 mm axle
  • Hydraulic Shimano disc brakes front and rear
  • Tough 160 mm cranks and 32H Alex rims on Novatec hubs
  • Bottle bosses for drinks or lock boost versatility for everyday use

Specifications

Frameset

Frame
Dirt TFS
Material: aluminum 26 Wheelsize 135x10mm Axle standard BSA bottom bracket standard
Frame Size
M, L
Fork
Manitou Circus Expert Air
100mm Suspension travel 110x20mm 41mm Fork offset Tapered
Colour
Black, Grey/Green

Brakeset

Brakes
Shimano MT200 - 2 piston
Rotors
Shimano RT26 - 160mm
Front Brake
Shimano MT200 - 2 piston
Rear Brake
Shimano MT200 - 2 piston

Drivetrain

Chain
KMC Z1 Narrow
Crank
Merida Expert TR II 32 teeth 160mm
Freewheel
14T Singlespeed Cog

Wheels

Front Hub
Novatec DH61SB-HL
110x20mm Width front hub 32 Spoke holes 6 Bolt
Rear Hub
Novatec D256SBT
135x10 M10mm Width rear hub 32 Spoke holes 6 Bolt 14T
Rims
Alexrims MD30
30mm Inner width Material: aluminum 32H Tubeless ready
Front Tyre
Kenda K-Rad K905 26x2.3" wire
Rear Tyre
Kenda K-Rad K905 26x2.3" wire
Spokes
Black stainless

Cockpit

Handlebar Stem
Merida Comp TR
Material: aluminium 35mm Diameter 0° Stem angle 40mm
Handlebar
Merida Comp TR
Material: aluminium 780mm Width 20mm Rise
Headset
FSA NO.57SC

Components

Seatpost
Merida Comp Dr
Material: aluminium 27.2mm Diameter 0mm Setback 250mm Length
Saddle
Merida Comp DR

Weight

Approx. Weight
12kg
Weighted at frame size M
Max. Rider Weight
135kg
