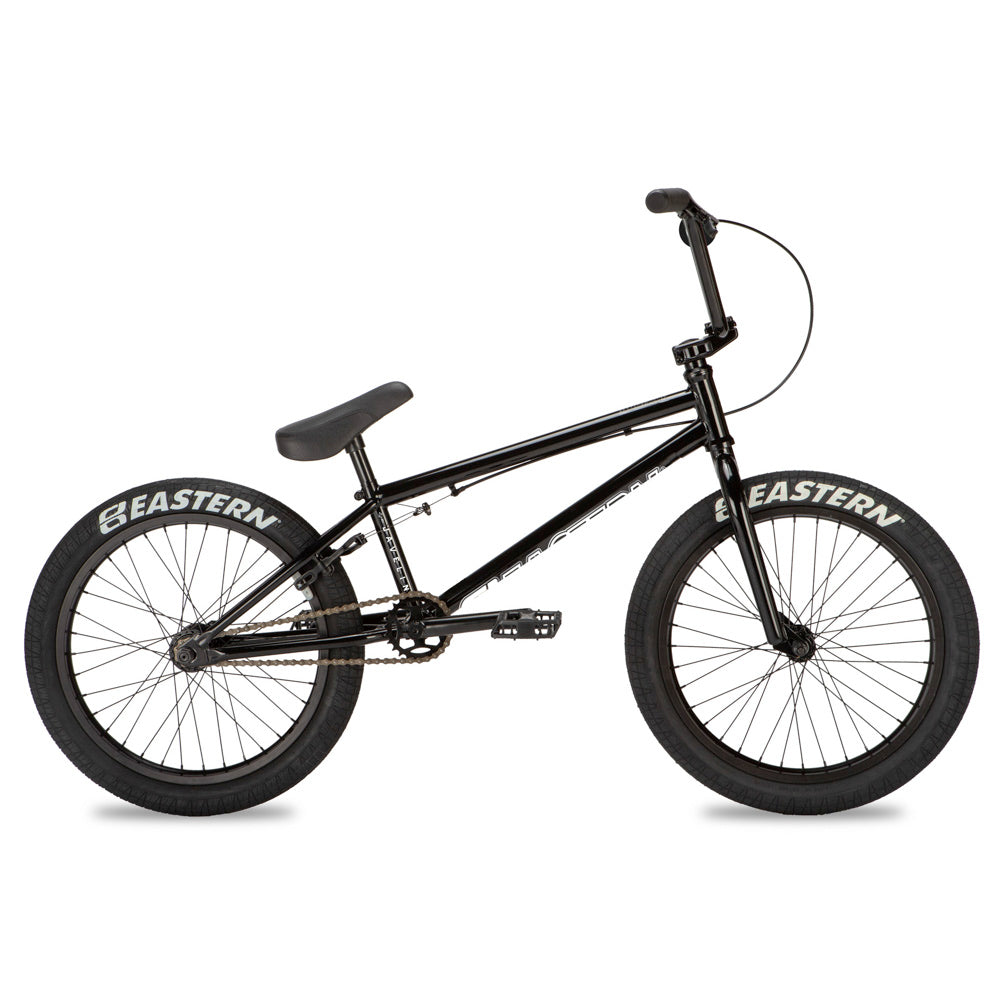

Javelin BMX Bike

The Eastern Javelin is a beginners 20" BMX bike with a little extra. The Javelin features a rugged steel frame w/ chromo down tube, sealed front & rear hubs for a long-lasting smooth ride. Sealed bearing integrated headset, a 3-piece chromoly cranks, Eastern grips, pedals, and sprocket.

Features

• Chromoly Down Tube & Fork Steerer Tube
• Sealed Front & Rear Hubs
• 3 Piece Tubular Chromoly Atom Cranks
• Mid BB
• Integrated Headset
• Eastern Riblet Grips
• Eastern Atom Pedals
• Eastern Sprocket
• Double Wall Rims

Specs

FRAME

• Hi-Tensile Steel with Chromoly Down Tube, Mid BB, Internal Headset
• Top Tube Size: 20.5″
• BB: Mid
• Headtube: Integrated
• Chainstay Length: 13.38″
• Clamp: Integrated with Frame

BARS

Hi-Ten 8.5"Upsweep/Backsweep 12⁰/1⁰

FORK

• Chromoly Steerer Tube with Hi-tensile steel Tapered legs, 3/8" dropouts
• Fork Rake: 28mm

HEADSET

 Integrated 45°X45° Sealed Cartridge Bearing

STEM

Forged Alloy Top Load Stem

GRIP

 Eastern Riblet Grips

CRANK

 3-Piece, Tubular Heat-Treated Chromoly, Bolt for Sprocket, Pinch Bolt with 8-Splined Spindle, 170mm 28.6mm Round Arm

BOTTOM BRACKET

 Sealed Bearing Mid

CHAINWHEEL

 Eastern Phorcys, Cold Hard Steel, 25T

CHAIN

 KMC Z510 1/2 x 1/8

PEDAL

Eastern Atom Plastic Pedal with 9/16" Axle

FRONT BRAKE N/A

FRONT LEVER N/A

REAR BRAKE

 U-Brake, Forged Alloy, Wide Body, Grey Brake Pads

REAR LEVER

Forged Alloy Lever

BRAKE CABLE [S] LINEAR

SADDLE

 Medium Width Seat/ Post Combo

POST

Comes with seat

FRONT HUB

Sealed Bearings, Forged Alloy Shell, Drilled for 36 Spokes, 3/8" Chromoly Axle

REAR HUB

Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle

FREEWHEEL

9 Tooth Driver with Hub

FRONT RIM

Alloy, Double Wall, Drilled for 36 Spokes

REAR RIM

Alloy, Double Wall, Drilled for 36 Spokes

SPOKES

14 Gauge with Brass Nipples

FRONT TYRE

20 x 2.3 *Specs subject to change

REAR TYRE

20 x 2.3 *Specs subject to change

PEG

none

*Specs & pricing subject to change
