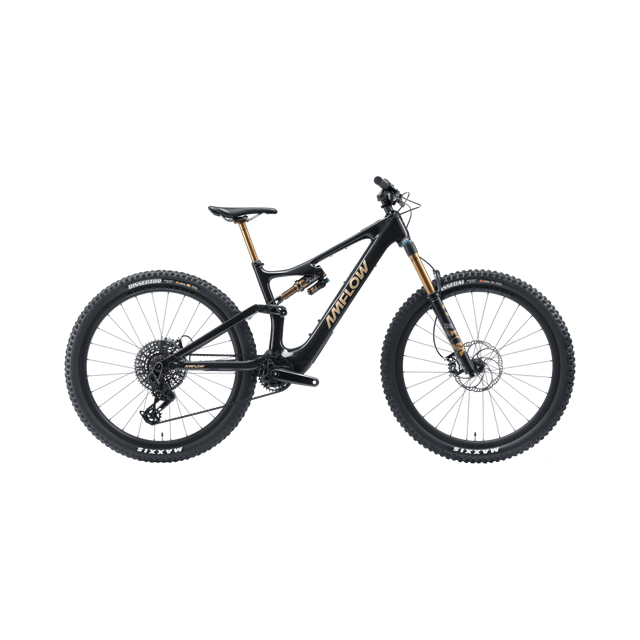

PL Carbon Pro Dual Suspension eMountain Bike

A full-power eMTB with a stunningly lightweight body. Meticulously designed and crafted to deliver the ultimate ride. Amflow PL's ultra-light carbon fiber frame weighs just 2.27 kg, [2] for breathtaking speed and agility. Tackle any terrain with confidence.

Drive Assistance
Powerful Drive, Smooth Assistance

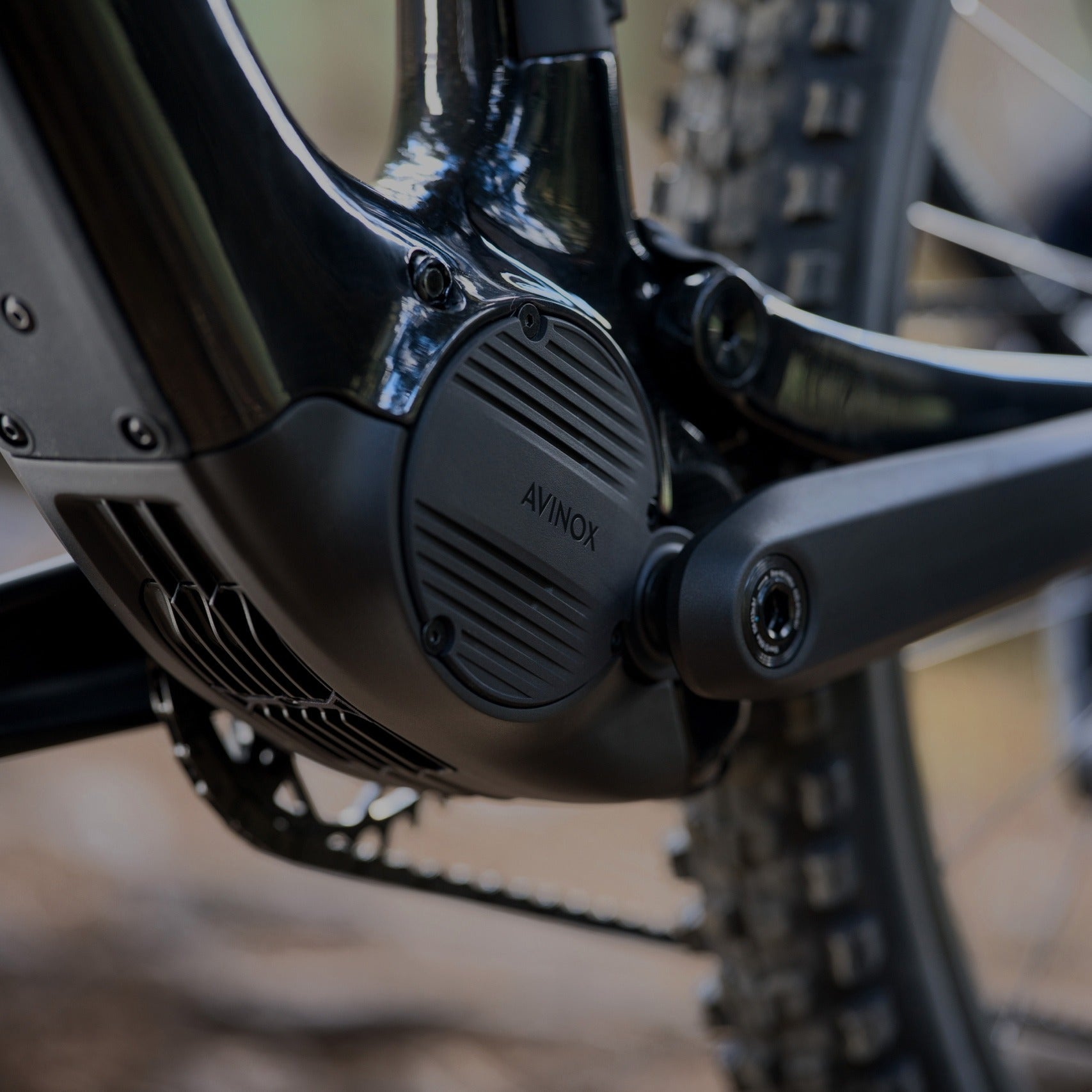

The Avinox M1 Drive Unit features a compound planetary gearset with an industry-leading power-to-size ratio. The durable, high-strength polymer material inside the M1 Drive Unit effectively suppresses noise during high-speed gearbox operation. With multiple precision sensors built-in, combined with advanced algorithms, it provides a strong, smooth assistance for a wide range of scenarios and conditions.

Five Modes, Targeted Assistance

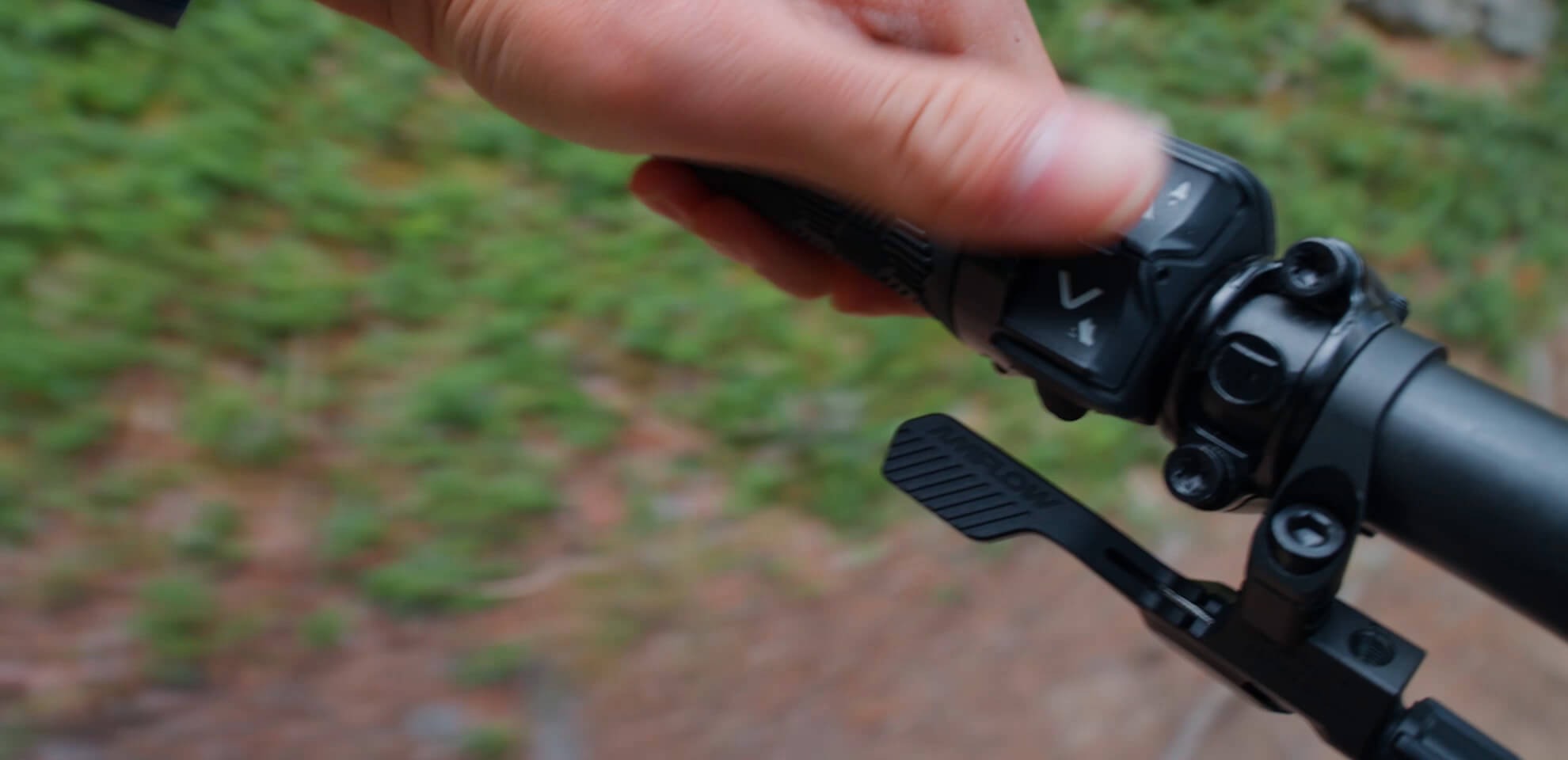

In addition to traditional assistance modes of Eco, Trail and Turbo, the Avinox Drive System also features a specialized Auto mode, which adapts assistance in real-time based on road conditions and riding position. [3] Once enabled, Auto mode empowers users to tackle a wide variety of terrain types and gradients without having to switch modes. For the most challenging trails or steep inclines, activate Boost mode to instantly get 120 N·m of torque. [4]

Intelligent Walk Assist, Effortless Control
Amflow PL's Walk Mode features intelligent walk assistance for easy incline traversing, Auto Hold to prevent rollback on slopes, and Hill Start Assist for additional torque to get you started on inclines. It also allows stationary gear shifting for a smooth and intuitive experience.

Battery and Range
High-Capacity Battery, Extended Range
The Avinox Drive System's battery weighs just 2.87 kg [2] and features ultra-high energy density for extended range.

Intelligent Battery Health, Extended Service Life
Amflow PL features a battery health management system for real-time monitoring, self-discharge, active voltage reduction, and abnormality alerts. Batteries are durable and reliable. After 500 full charge-discharge cycles, the battery still maintains 80% of its initial capacity. [6]

GaN 3x Fast Charging [7]
The palm-sized fast charger is capable of charging the battery from 0% to 75% in just 1.5 hours. [8]. 0% to 75% in 1.5 hours [8]

Geometry and Handling
Agile and Responsive, All-round Performance
Versatile Geometry to Dominate Terrain
Amflow PL's frame design features cutting-edge geometry, offering balanced performance that's both lightweight and hyper-agile. This dynamic handling empowers riders to easily take on rugged trails and more technical rides.

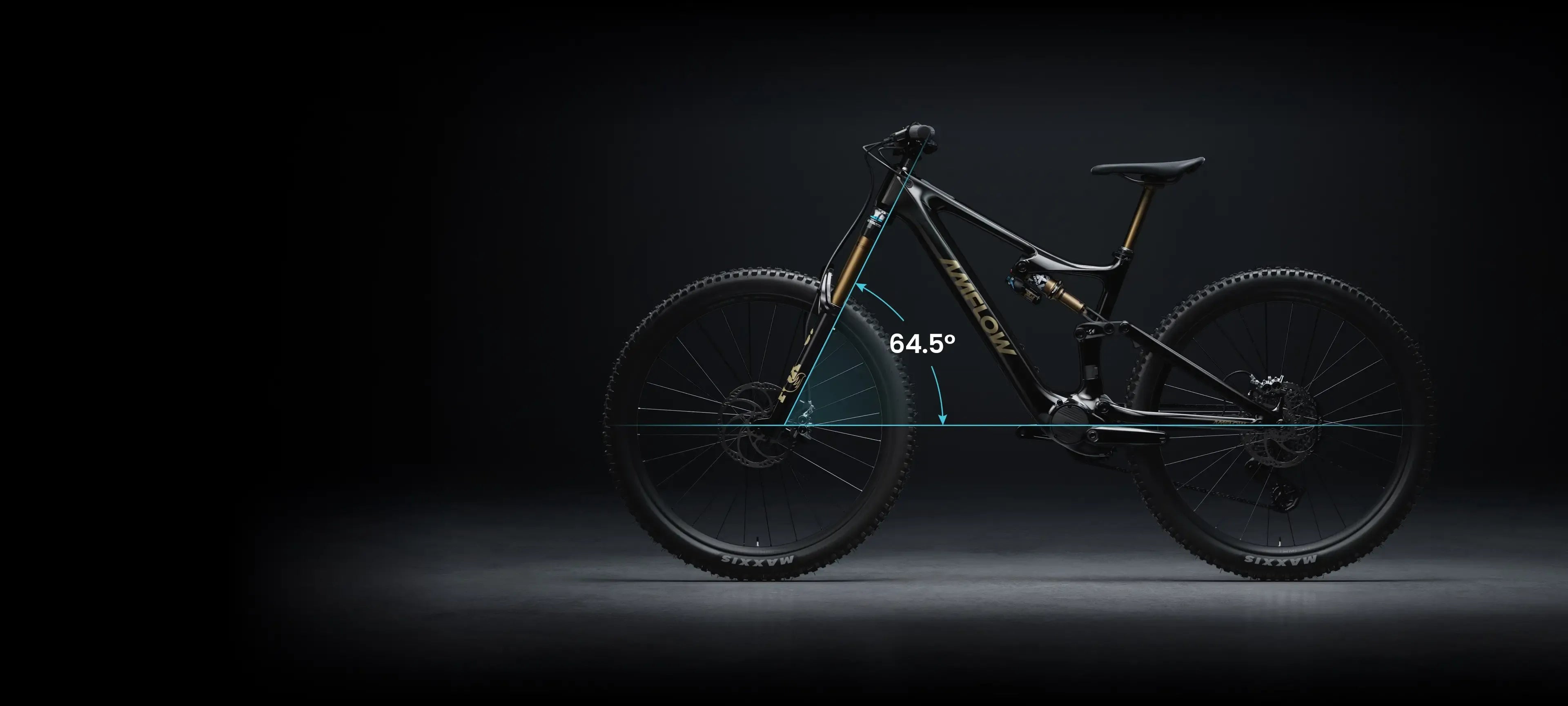

Head Tube Angle

A 64.5° head tube angle paired with a 44mm rake allows for more sensitve shock absorption and reduces the forward shift of the center of gravity during heavy braking.

Seat Tube Angle

A 77° seat tube angle enables a more balanced rider weight distribution between the front and rear wheels, facilitating easier handling on challenging climbs.

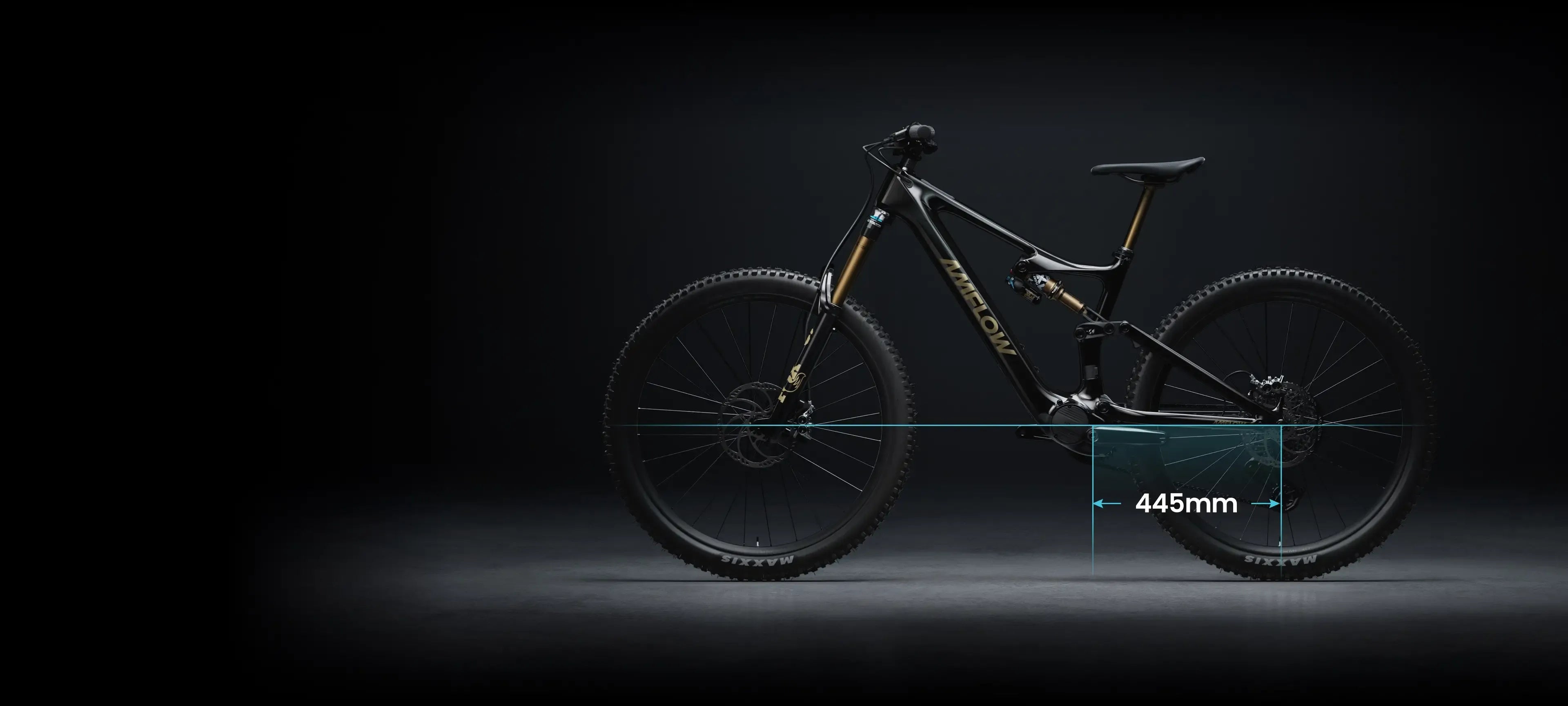

Chainstay Length

The 445mm chainstay length offers nimble handling while still accommodating a 29-inch wheelset, enhancing the bike's obstacle-clearing capabilities.

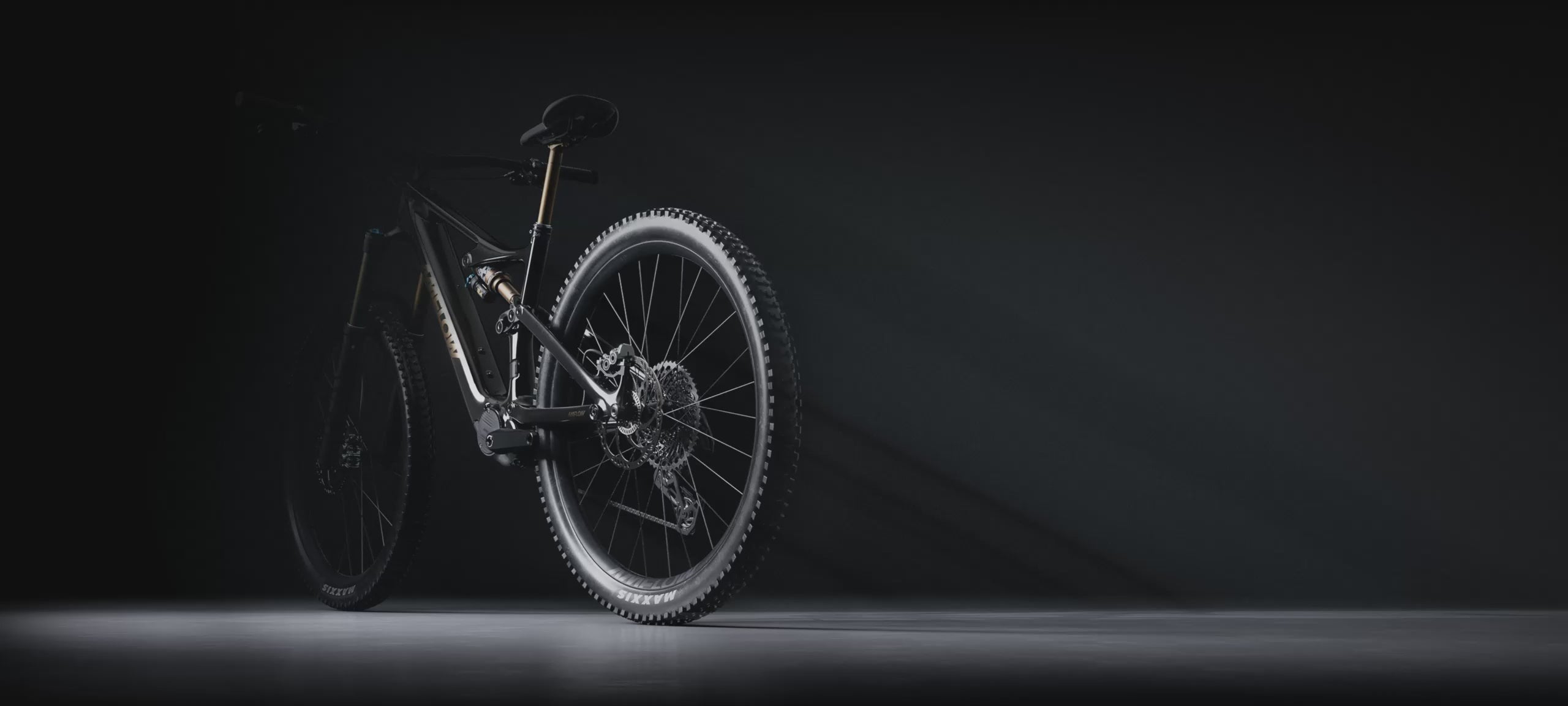

29" and 27.5" Compatible

Amflow PL is compatible with both 29 and 27.5-inch rear wheels. By adjusting the flip chips, you can accommode both sizes without altering the frame's geometric centre of gravity. Whether you want to hone your technical skills or simply enjoy high speeds, Amflow PL is ready to ride!

Advanced Four-Bar Linkage Design for Optimized Ride Efficiency
The advanced four-bar linkage structure of Amflow PL greatly improves pedaling efficiency, ensuring that every stroke counts.

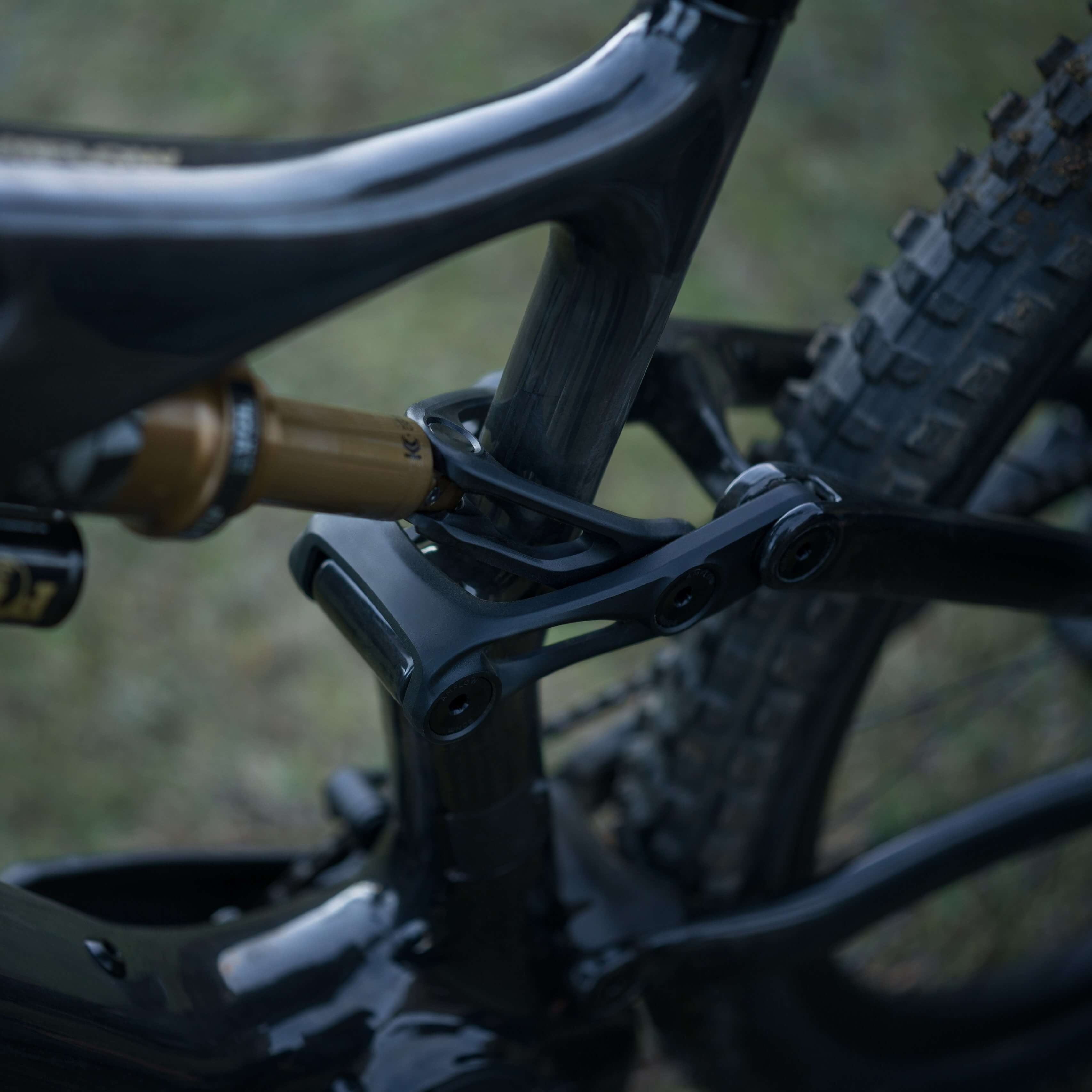

Superior Suspension
The rear shock, co-tuned with FOX, offers sensitive initial stroke response to effectively filter out minor vibrations. It also provides powerful end-stroke support to prevent bottom-outs during continuous high-speed impacts or steep descents, so you can fully enjoy every off-road adventure.

Touchscreen Control System
Built-in Display, Smartphone Connectivity

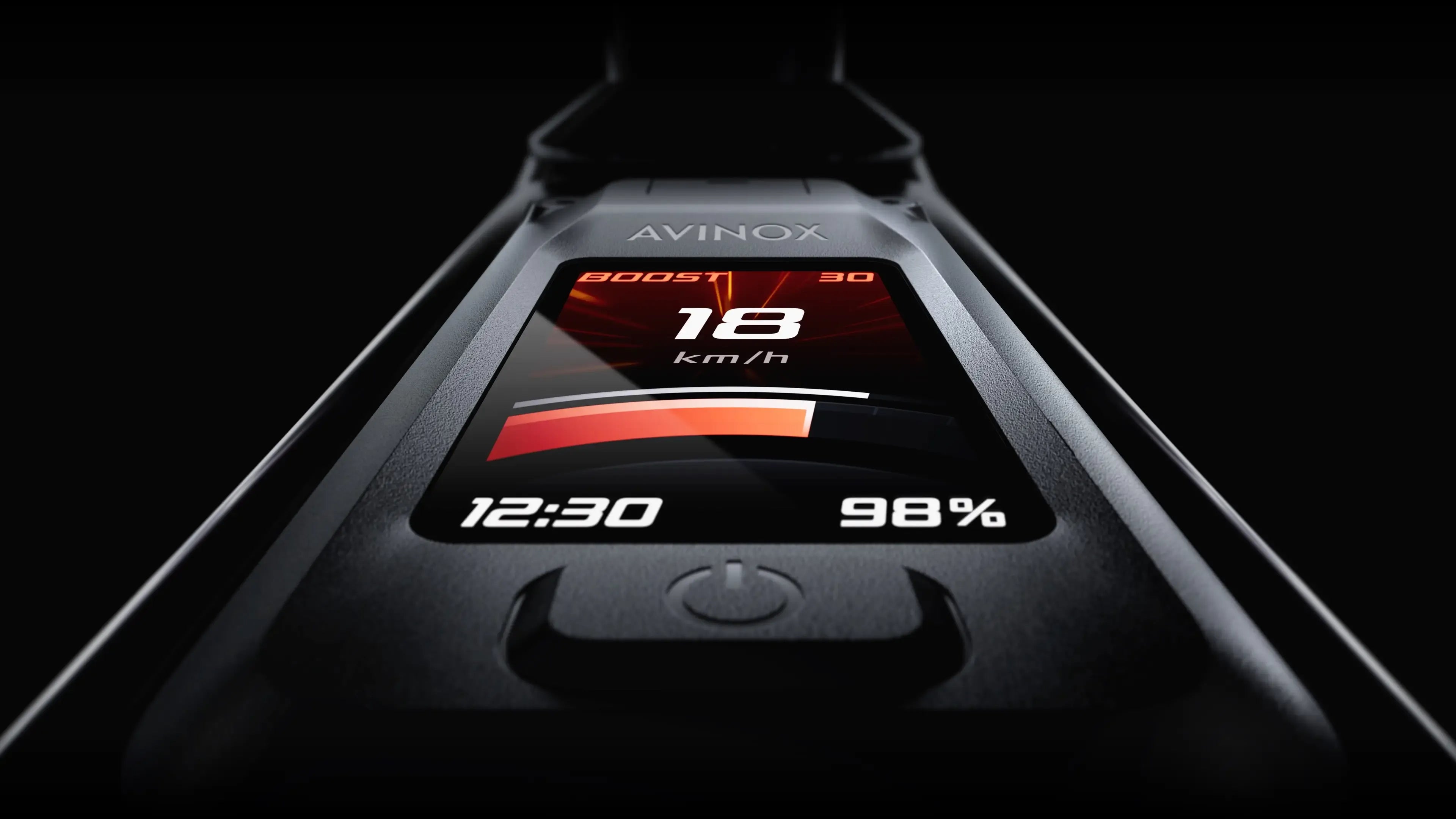

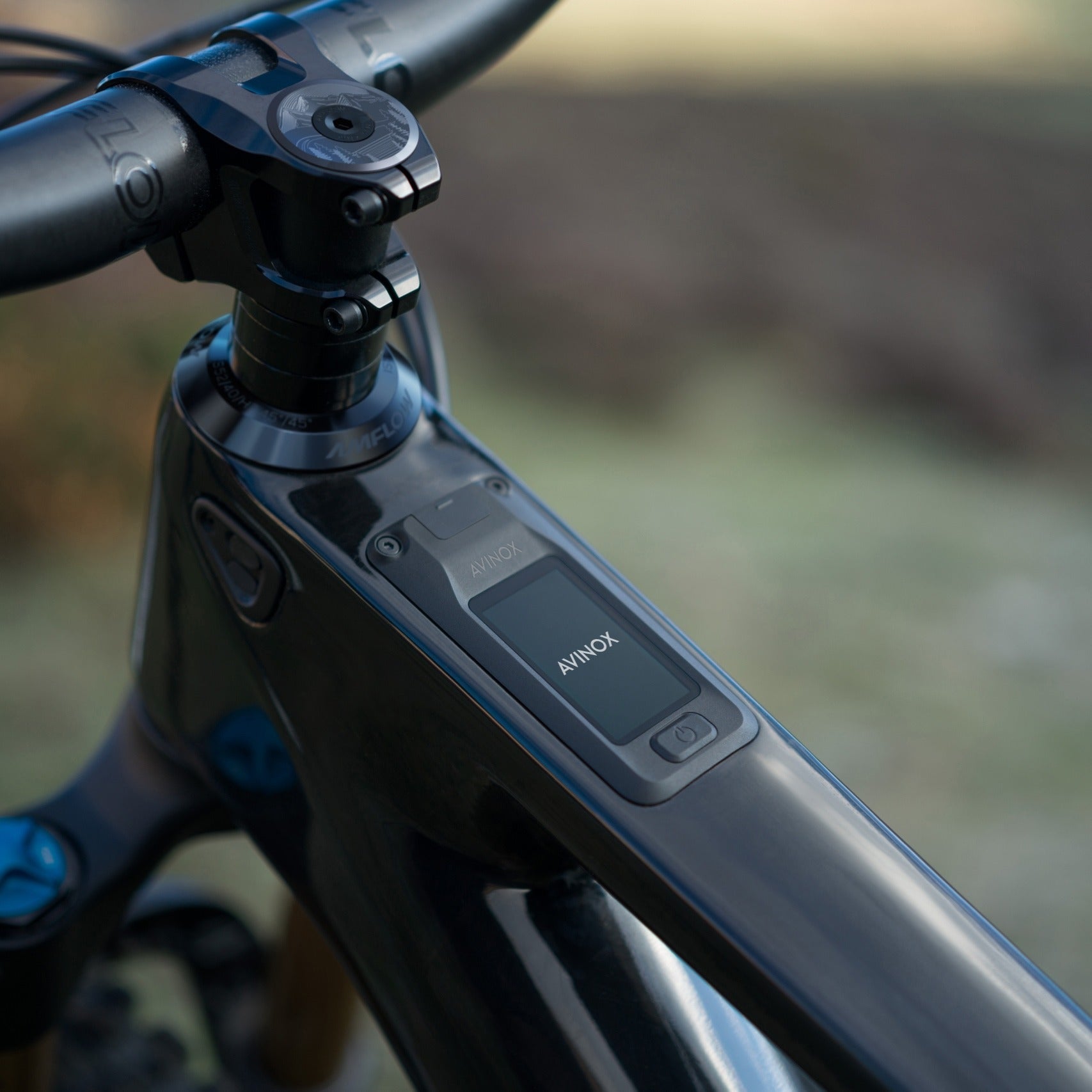

The brain of the Avinox Drive System is the Control Display. This 2-inch full-color OLED touchscreen is integrated directly into the frame. It displays real-time ride data and estimated range, and enables quick changes of the display content with a simple slide.

Anti-Theft Protection
Users can configure multiple anti-theft settings on the Avinox Ride app, including password authentication and abnormal movement alerts. If the bike is moved, an alarm will sound, [10] and the Avinox Ride app will send a push notification, [11] making it convenient for users to check the bike's real-time location and status. Users can also activate a Phone Key to unlock the bike automatically according to proximity.

Customizable Parameters

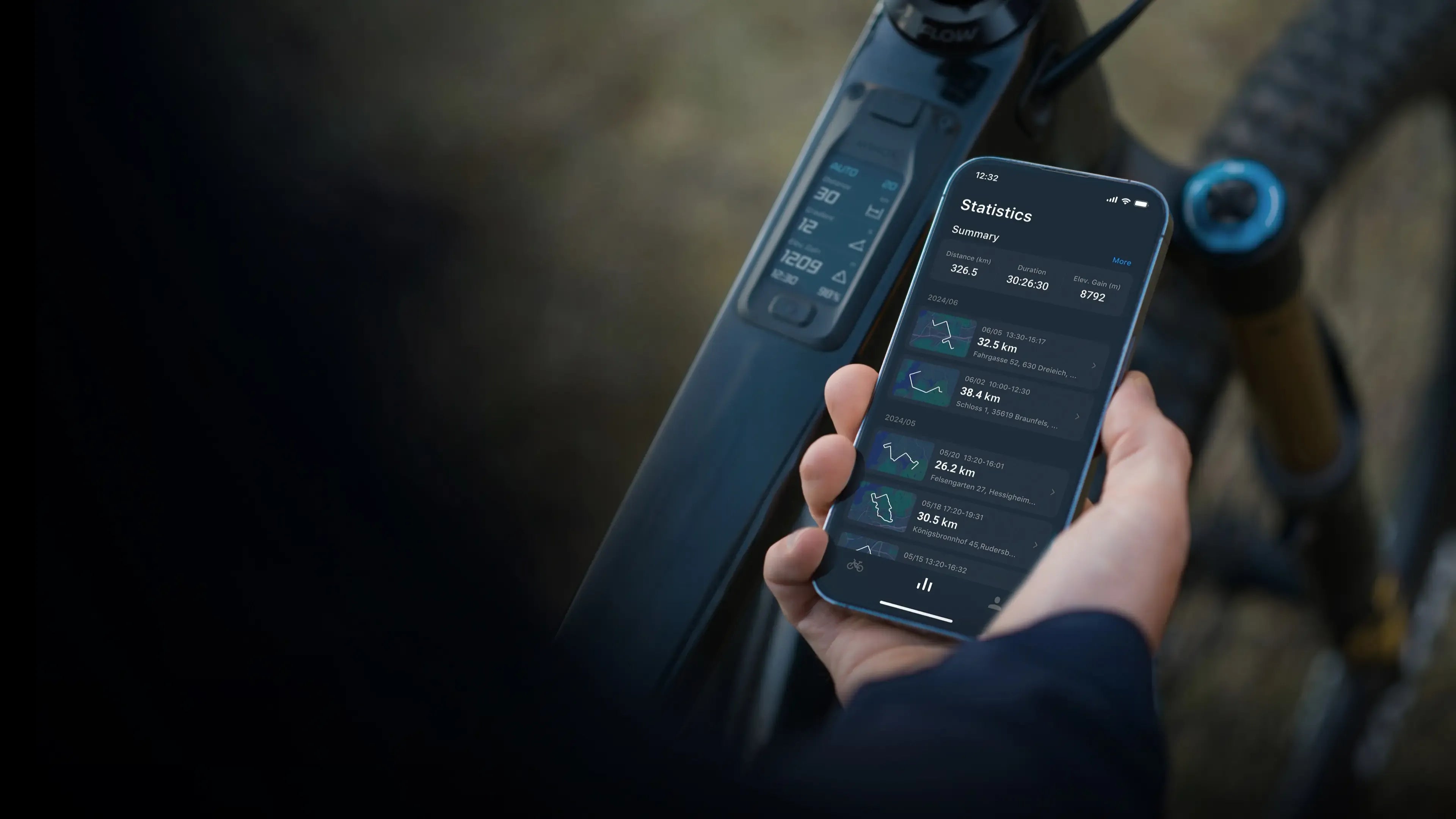

On the Avinox Ride app, users can customize the bike's homescreen parameter display and adjust power, torque and cadence according to riding habits.

Remote Locating

Conveniently check the bike's real-time location and status via the Avinox Ride app.

* The visuals displayed on this page are for illustrative purposes only. Please note that the actual product may vary in appearance.
1. The Amflow PL has a rated power of 250 W. The weight data provided refers to the complete bike weight of the M-size Amflow PL Carbon Pro (600Wh) when equipped with tubeless tires. Actual product weight may vary due to variations in material batches and external factors.
2. Data measured in an Amflow laboratory. Product weight may vary due to material batches, measurement methods, manufacturing processes, etc. Refer to the actual product for precise data. The frame weight refers to the M-size frame.
3. As of July 3 2024, according to Amflow's research on multiple bike models on the market.
4. Boost mode can be maintained for a maximum of 60 seconds, after which it will automatically switch back to the previously selected mode.
5. The 157km and 117km ranges were measured on a paved, flat road with a rider weighing 80 kg riding the Amflow PL Carbon Pro (800Wh) and the Amflow PL Carbon Pro (600Wh), respectively, both in Eco mode at a cadence of 65 rpm, a speed of 21 kph, and the assistance settings on default.
6. Data measured in an Amflow laboratory. After 500 full charge-discharge cycles (from 0% to 100% battery capacity) in a 25° C (77° F) laboratory environment, the battery still maintains 80% of its initial capacity.
7. Amflow PL comes with a 12A/508W charger, which charges at a rate three times faster than a 4A/168W charger.
8. Time for charging from 0% to 75% measured in an Amflow laboratory, which is approx. 89 minutes for the 600Wh battery and approx. 96 minutes for the 800Wh battery. This data is for reference only. Actual usage may vary due to individual product differences, user habits, and environmental factors. Refer to the actual usage.
9. Different wheel sizes are available for purchase as needed.
10. When the Avinox Drive System is offline and not being charged, it communicates with the Avinox Ride app every 30 minutes (approximately) to sync system status. As a result, bike location change alarms may have an up to 30-minute delay between the actual bike movement and the alert. Features related to 4G network communication require the additional purchase of a SIM card.
11. Notifications from the Avinox Ride app are effective only when the bike is connected via Bluetooth or a 4G network. If Bluetooth is disconnected or a SIM card is not inserted into the bike, the app will be unable to send notifications.
12. With the Avinox Drive System online, this function can be achieved when the mobile phone and bike communicate via Bluetooth/4G network. If the system is offline and the bike detects abnormal movement, this function can also be triggered when the phone and bike communicate via Bluetooth/4G network. With a Bluetooth connection, in an environment free of interference and obstructions, the effective range of this function is approx. 10 meters (32 feet). However, performance may be affected by the mobile phone or other devices used. Actual experience may vary. When using 4G network for communication, this function is not limited by distance. Features related to 4G network communication require the additional purchase of a SIM card and are not available during data roaming.
13. Heart rate monitoring requires the purchase of additional accessories.
14. Amflow PL and the Avinox Drive System are certified by TÜV SÜD and the chargers by TÜV Rheinland.
