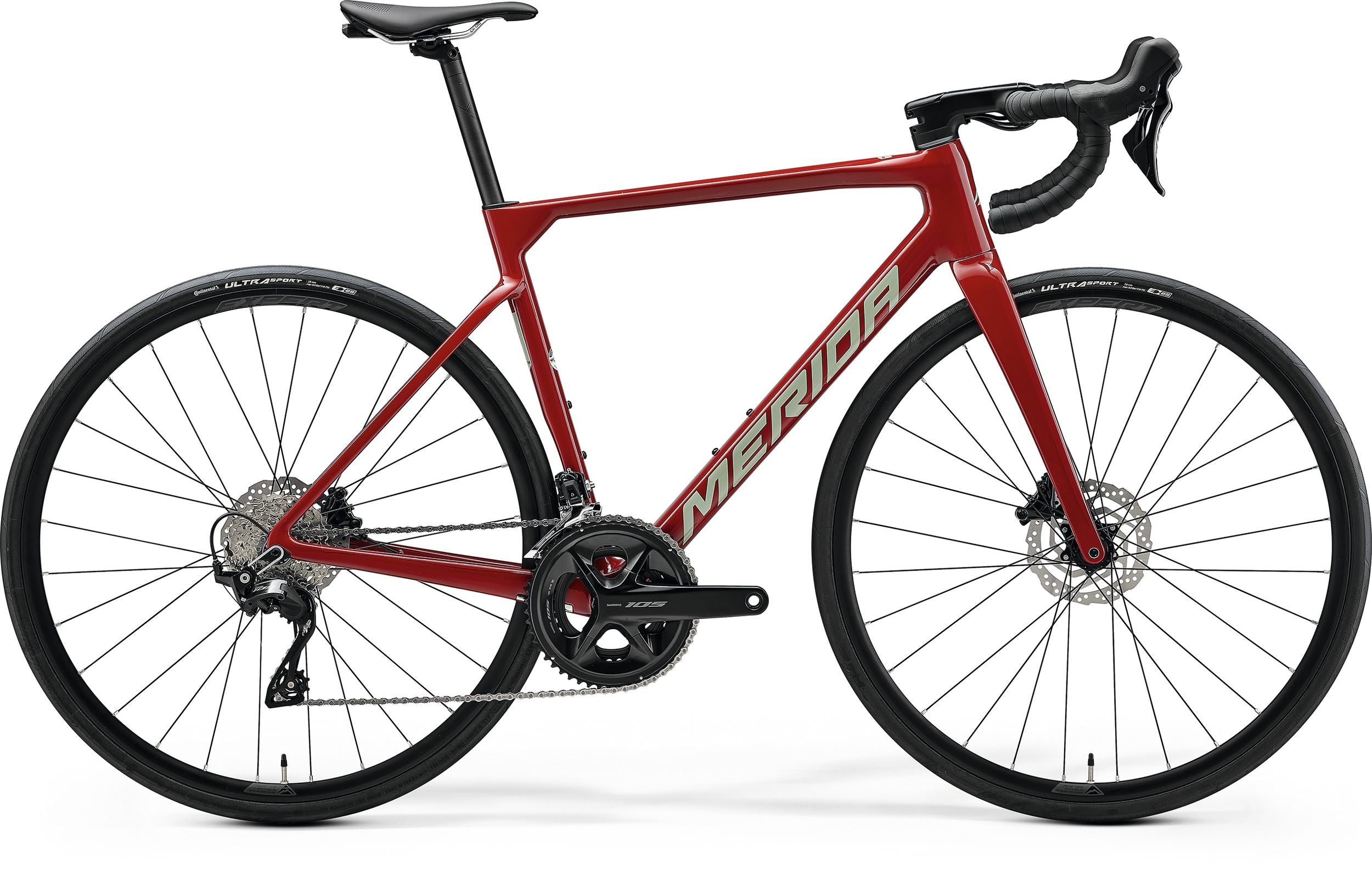

Scultura 4000 V3 Road Bike Heritage Red/Grey (25)
Pickup available at Bike Force Joondalup
Usually ready in 24 hours
Scultura 4000 V3 Road Bike Heritage Red/Grey (25)
Small
Bike Force Joondalup
Unit 8/162 Winton Road
Joondalup WA 6027
Australia
Description
Based around the latest, super smooth 12-speed 105 groupset from Shimano and featuring our award-winning SCULTURA CF3 full carbon frame, the SCULTURA 4000 is far from an entry bike to our latest SCULTURA frame design family. Similarly to its bigger brothers, it combines a long list of air slicing features and race-proven geometry, adapted from our REACTO family, with low weight and class-leading riding comfort creating an almost unbeatable package.
The fifth generation of our lightweight racer marries outstanding handling with improved comfort and an even more aerodynamic chassis. Thanks to incorporating selected aero details from our test and award-winning REACTO aero bike, the SCULTURA is the most aerodynamic version ever. Yet, it remains true to its lightweight, agility and rider comfort focus; in fact it takes these factors to the next level, so far that Cycling Weekly gave it the highly sought after 'Best Value Race Bike of the Year 2024' award. The SCULTURA demonstrates outstanding compliance, providing the rider with class-leading riding comfort that will help to keep the body fresh for the final sprint or ascent. Available in CF5 and CF3 carbon frame versions, both sharing their geometry with the World Tour proven REACTO, our classic road bike combines outstanding comfort with whippet-like acceleration and class-leading climbing pedigree.
Features
- Lightweight CF3 carbon frame (approx. 997 g - in size M) with race proven (identical to REACTO) geometry
- Shimano 105 12-speed groupset
- MERIDA EXPERT SL II stem
- MERIDA EXPERT SL handlebar
- MERIDA EXPERT SL wheelset
- MERIDA EXPERT CC carbon seat post and DISC COOLER technology
Specs
FRAME | SCULTURA CF3 V; MAT carbon; 700x30C max. WHS; 100x12/ 142x12 AST; Pressfit 86,5 |
FORK | SCULTURA CF3 disc; MAT carbon; 700x30C max. WHS |
BRAKE LEVER | Shimano 105 |
BRAKE - FRONT | Shimano 105; Hydraulic disc |
BRAKE - REAR | Shimano 105; Hydraulic disc |
ROTOR - FRONT | Shimano RT10; 160mm |
ROTOR - REAR | Shimano RT10; 160mm |
C-HOUSING | LEX40-L3 |
CHAIN | Shimano CN-M6100-12 |
CHAINWHEEL | Shimano 105; FCR7100, 52-36 ATC |
CRANK/SIZE | 165 mm-3S/XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL |
BB SET | SM-BB71-41B, Pressfit 86.5 |
DERAILLEUR - FRONT | Shimano 105 |
DERAILLEUR - REAR | Shimano 105; GS |
FREEWHEEL | Shimano CS-R7101; 11-34 ATC; 12 GER |
PEDAL | |
GRIP | MERIDA ROAD Expert |
HANDLEBAR | MERIDA EXPERT SLII; MAT aluminium; 380mm(3S-XXS-XS-S) , 400mm (M-L-XL) |
H-B STEM | EXPERT SL 2PII; MAT aluminium; -9 ASD |
H-STEM/SIZE | 90mm-3S/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL |
HUB - FRONT | Shimano HB-TC500; 100x12 WHF; 28 SPH; Centerlock |
HUB - REAR | Shimano FH-TC500-HL; 12-142 WHR; 28 SPH; Centerlock |
AXLE - FRONT | MERIDA EXPERT TR |
AXLE - REAR | MERIDA EXPERT SL; including removable lever; 6/4mm allen key |
RIM | MERIDA EXPERT SL; 17 IWR; 22 HRI; MAT aluminium |
SADDLE | MERIDA EXPERT SL; 6% recycled and 23% nature material; V-mount; incl. MERIDA minitool |
SEAT CLAMP | MERIDA EXPERT |
SEAT POST | MERIDA EXPERT CC; 27.2 DSP; 15 SSB; Carbon |
SHIFTER - FRONT | Shimano 105 disc |
SHIFTER - REAR | Shimano 105 disc |
TYRE - FRONT | Continental Ultra Sport III; 700x28C; fold |
TYRE - REAR | Continental Ultra Sport III; 700x28C; fold |
E-SHIFT PARTS-2 | |
E-SHIFT PARTS-3 | |
OTHER 5 | MERIDA Multitool with saddlebox |
