Scultura 5000 Road Bike (2026)

Sale price$4,199.00 AUD
Only 1 unit left

The Merida Scultura 5000 is nimble, fast, comfortable, yet aero. The perfect all-round road bike!
Color: Starfield Purple Red
Size: X-Small

Size

Enquire Now

Interested in the Merida Scultura 5000 Road Bike (2026)? Get in touch to find out more!

Pickup available at Bike Force Joondalup

Usually ready in 24 hours. Bikes may need additional time for assembly.

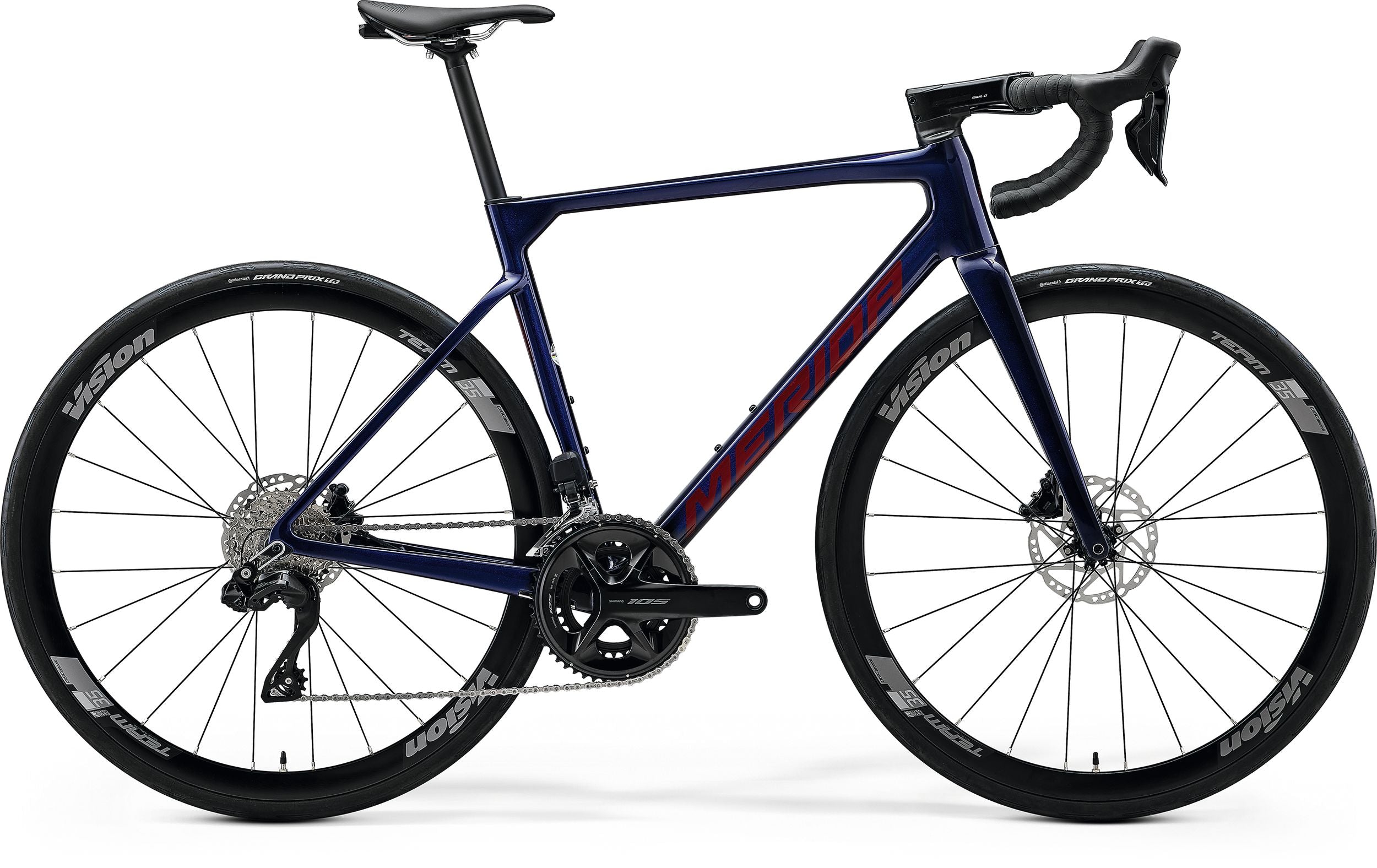

A Merida Scultura 5000 Road Bike with a white background

Scultura 5000 Road Bike (2026)

Starfield Purple Red / X-Small

Bike Force Joondalup

Pickup available, Usually ready in 24 hours. Bikes may need additional time for assembly.

Unit 8/162 Winton Road
Joondalup WA 6027
Australia

+6193011050

Description

Pairing our carbon frame with Shimano's electronic Di2 105 groupset, the SCULTURA 5000 offers incredible bang for your buck. Sharing the same build as the SCULTURA 6000 but with a budget friendly wheelset, it's ripe for upgrades - or just riding straight away.

You want nimble handling, fast acceleration, impressive comfort and low weight, but you don't want to spend the world. Look no further than our SCULTURA 5000. A lightweight CF3 full carbon frame and fork combination with World Tour proven geometry, coupled with class-leading compliance that helps reduce road buzz, and the hugely popular Shimano 105 Di2 12-speed groupset are just some of the key points that make the SCULTURA 5000 a real winner.

The fifth generation of our lightweight racer marries outstanding handling with improved comfort and an even more aerodynamic chassis. Thanks to incorporating selected aero details from our test and award-winning REACTO aero bike, the SCULTURA is the most aerodynamic version ever. Yet, it remains true to its lightweight, agility and rider comfort focus; in fact it takes these factors to the next level, so far that Cycling Weekly gave it the highly sought after 'Best Value Race Bike of the Year 2024' award. The SCULTURA demonstrates outstanding compliance, providing the rider with class-leading riding comfort that will help to keep the body fresh for the final sprint or ascent. Available in CF5 and CF3 carbon frame versions, both sharing their geometry with the World Tour proven REACTO, our classic road bike combines outstanding comfort with whippet-like acceleration and class-leading climbing pedigree.

Features

  • Lightweight CF3 carbon frame (approx. 997 g - in size M) with race-proven (identical to REACTO) geometry
  • Shimano 105 Di2 electronic 12-speed groupsetMERIDA EXPERT SL two-piece cockpit
  • Vision Team 35 Clincher wheelset
  • DISC COOLER technology
  • MERIDA EXPERT CC carbon seat post

Specifications

Frameset

Frame
Scultura CF3 V
Material
Carbon
Max Wheelsize
700 x 30C
Axle Standard
100x12/142x12mm
Pressfit
86,5
Frame Size
3XS, XXS, XS, S, M, L, XL

Colour
Starfield Purple Red & Metal Black/Gunmetal Grey

Front Fork

Fork
Merida Scultura CF3 Disc
Material
Carbon
Max Wheelsize
700x30C

Brakes

Brakes
Disc
Rotors
Shimano RT54 160mm
Brake Lever
Shimano 105

Cockpit

Headset
FSA ACR NO.55R
Handlebar
Merida Expert SL II
Material
Aluminium
380mm (3S-XXS-XS-S) 400mm (M-L) 420mm (XL)
Handlebar Stem
FSA SMR-II
Material: Aluminium -10° 90 mm (3XS/XXS/XS), 100 mm (S), 110 mm (M/L), 120 mm (XL)

Grip
Merida Road Expert

Groupset

Front Derailleur
Shimano 105 Di2
Rear Derailleur
Shimano 105 Di2
Shifters
Shimano 105 Disc Di2

Seatpost
Merida Expert SL
27.2mm diameter 0mm setback Carbon
Seat Clamp
Merida Expert
Saddle
Merida Expert SL
6% recycled and 23% nature material V-mount incl. MERIDA minitool
Chain
Shimano M6100-12
Crank
Shimano 105 R7100
50-34 teeth 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL
Freewheel
Shimano 105 R7101
11-34 teeth 12 speed
Bottom Bracket
Shimano SM-BB71-41B
Pressfit 86.5
Wheelset
Vision Team 35 Clincher Disc
100x12mm width front hub 142x12mm width rear hub 19mm inner width 35mm height centerlock material: aluminium Tubeless ready (tubeless tape and valves not included)
Tyre Front
Continental Grand Prix TR
700x28C fold tubeless ready
Tyre Rear
Continental Grand Prix TR
700x28C fold tubeless ready
Axles
Merida Expert SL
including removable lever 6/4mm allen key
Approximate Weight
8.6kg
Weighed at frame size M
