SP5+ Electric Hybrid Bike

Sale price$2,999.00 AUD
Included Service Plan

Every bike we sell includes a 3-year service plan!
Learn More

Assembled & Ready to Ride

All our bikes are assembled by a professional and thoroughly checked, ready to ride!

Only 1 unit left

The X-LAB SP5+ E-Bike is designed for Urban riders and is light, efficient and finishes off with two stylish colours! Read More
Color: Stormcloud Grey
Size: Large

Size

Enquire Now

Interested in the X-LAB SP5+ Electric Hybrid Bike? Get in touch to find out more!

Pickup available at Bike Force Joondalup

Usually ready in 24 hours. Bikes may need additional time for assembly.

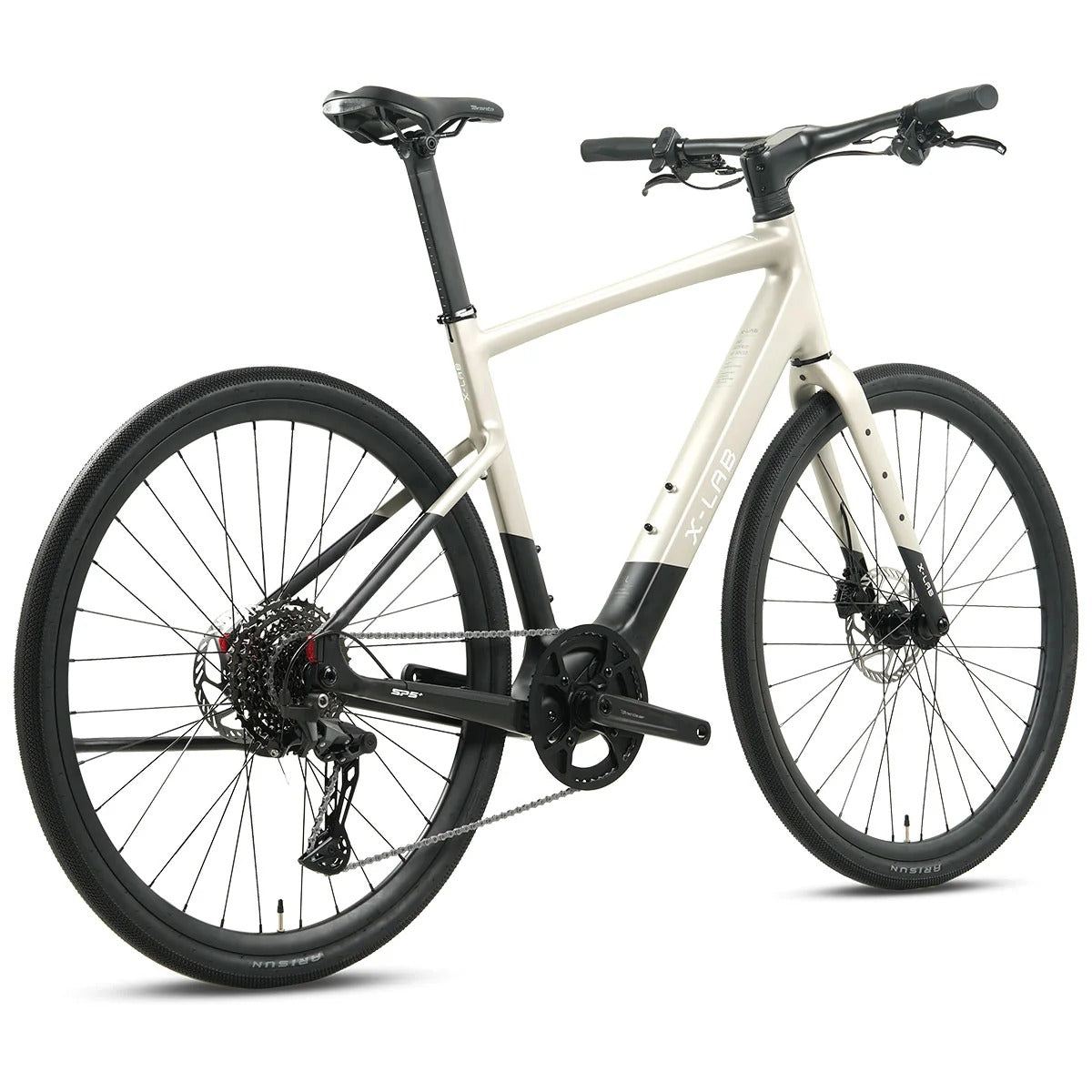

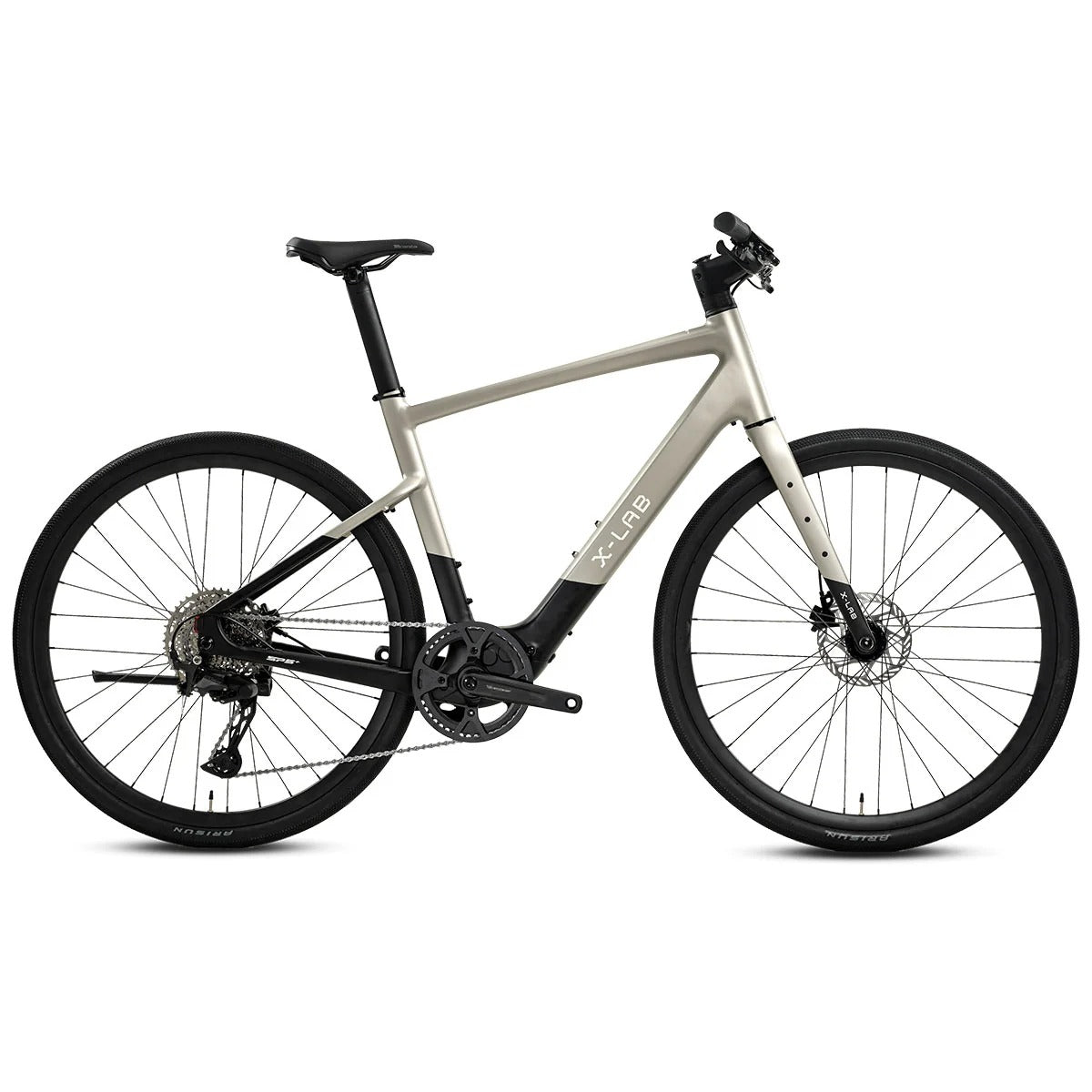

Beige and black X-Lab electric hybrid bike on a white background

SP5+ Electric Hybrid Bike

Stormcloud Grey / Large

Bike Force Joondalup

Pickup available, Usually ready in 24 hours. Bikes may need additional time for assembly.

Unit 8/162 Winton Road
Joondalup WA 6027
Australia

+6193011050

Description

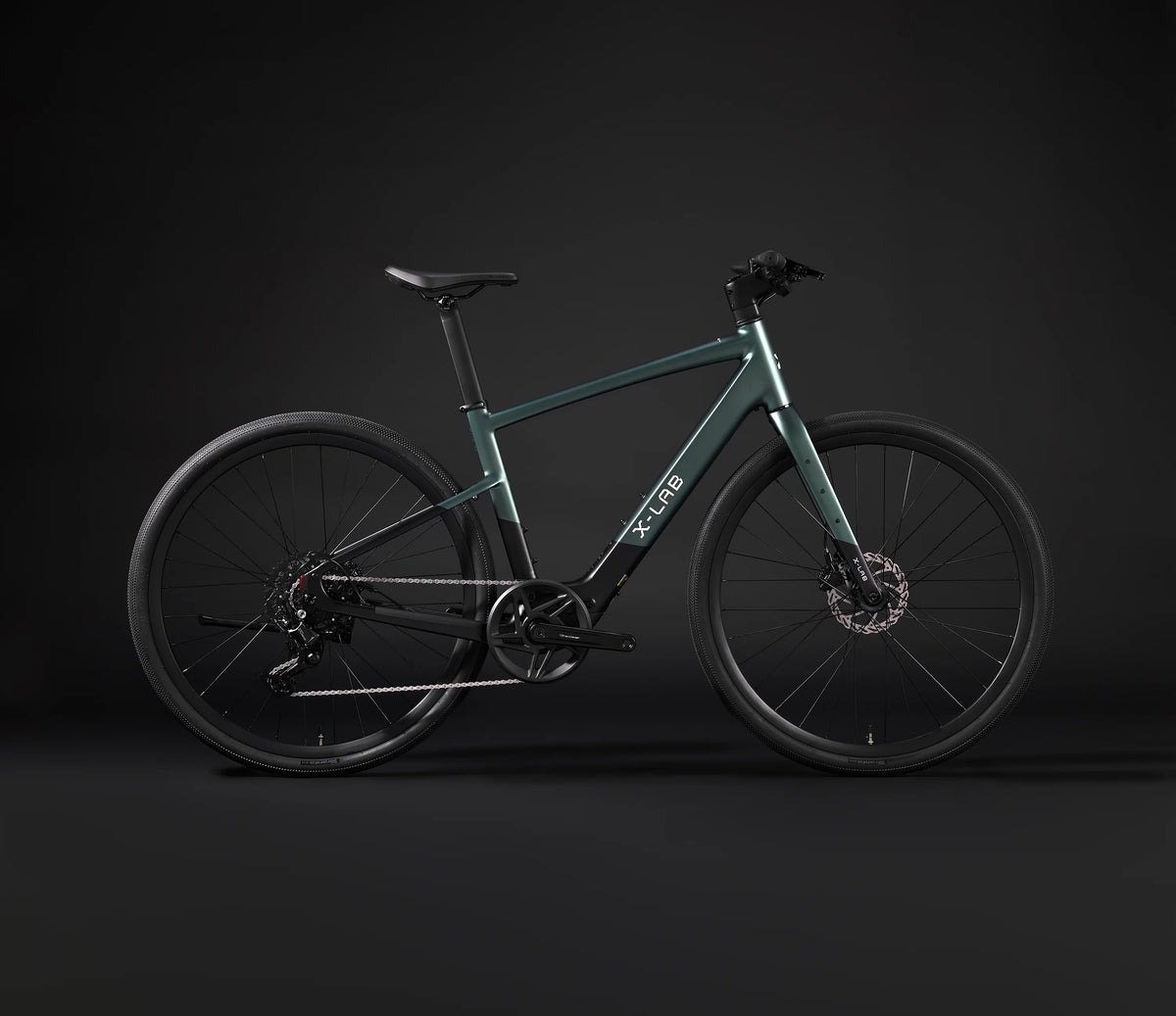

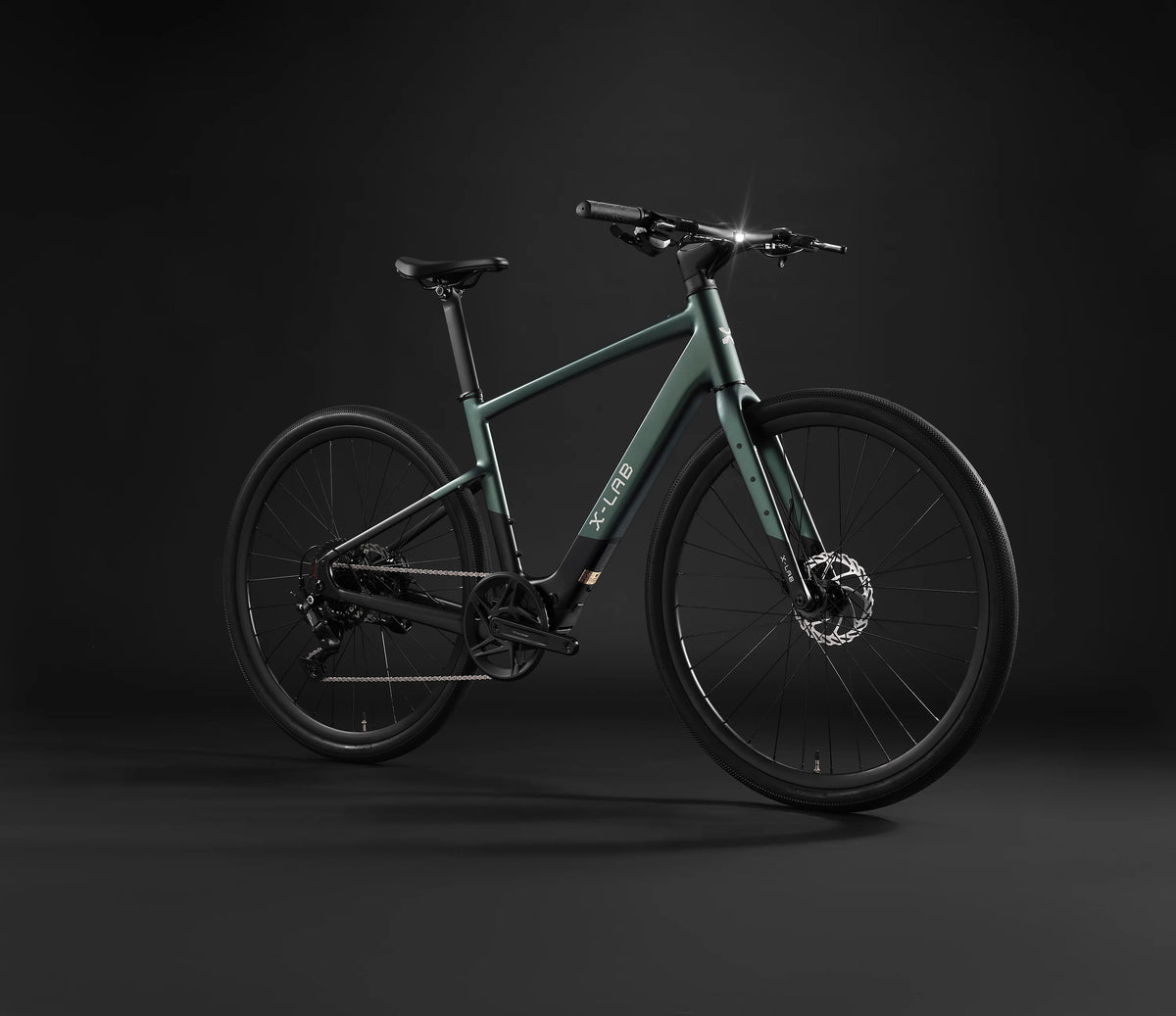

The X-LAB SP5+ Electric Hybrid Bike is built for commuting or any urban adventures! It is a fitness-focused electric bike loved by commuters and fitness riders alike!

The SP5+ is built to make electric cycling simple, smooth and accessible. It has a lightweight frame and intuitive electric assist which provides effortless acceleration and reliable range, helping riders cover longer distances with ease.  The balanced geometry and durable construction ensures stablility and comfort whether you're commuting, exploring the 'hood, or enjoying weekend rides. The SP5+ proves that electric mobility can be both practical and fun, with an element of fitness built in.

Everything You Need Right Up Front:

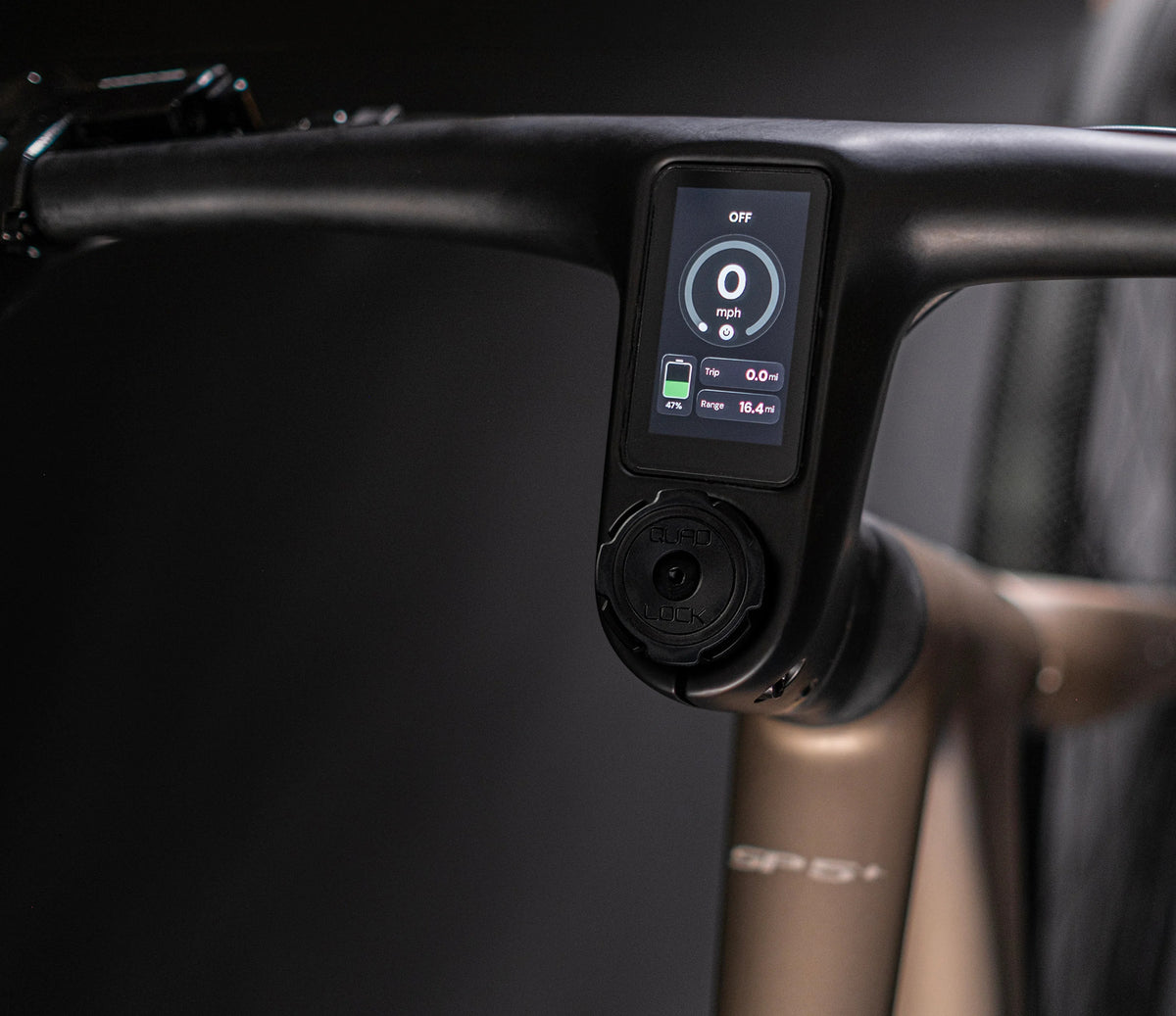

An integrated cockpit and clear dashboard makes riding intuitive with assist modes, range and ride essentials all in one clean interface designed for effortless daily use.

Lightweight and Versatile Electric Mobility:

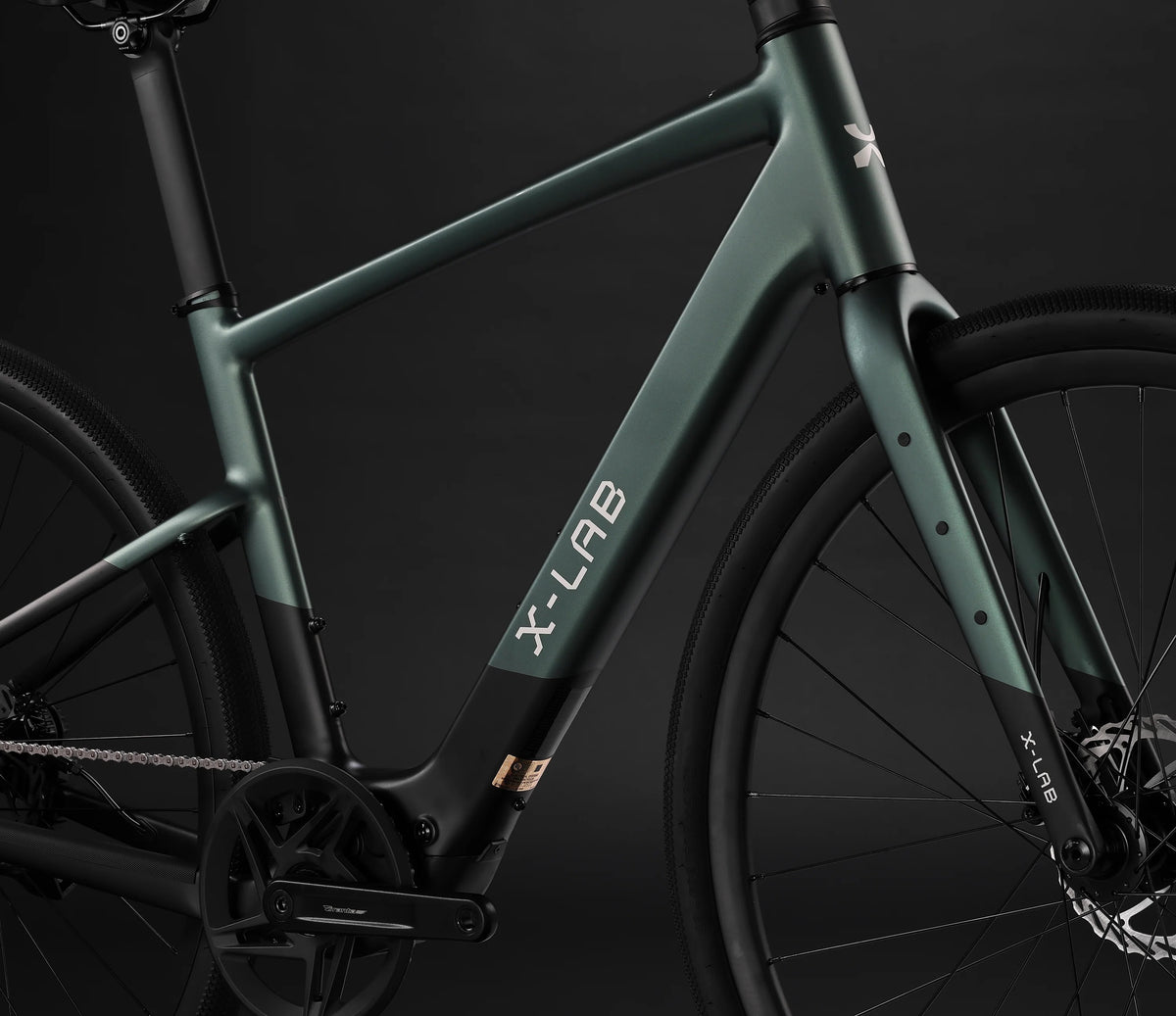

A sleeker alloy frame and a complete build under 17 kilos makes the SP5+ feel quick, agile, and more like a fitness bike, just with an extra reassuring push whenever you want it.

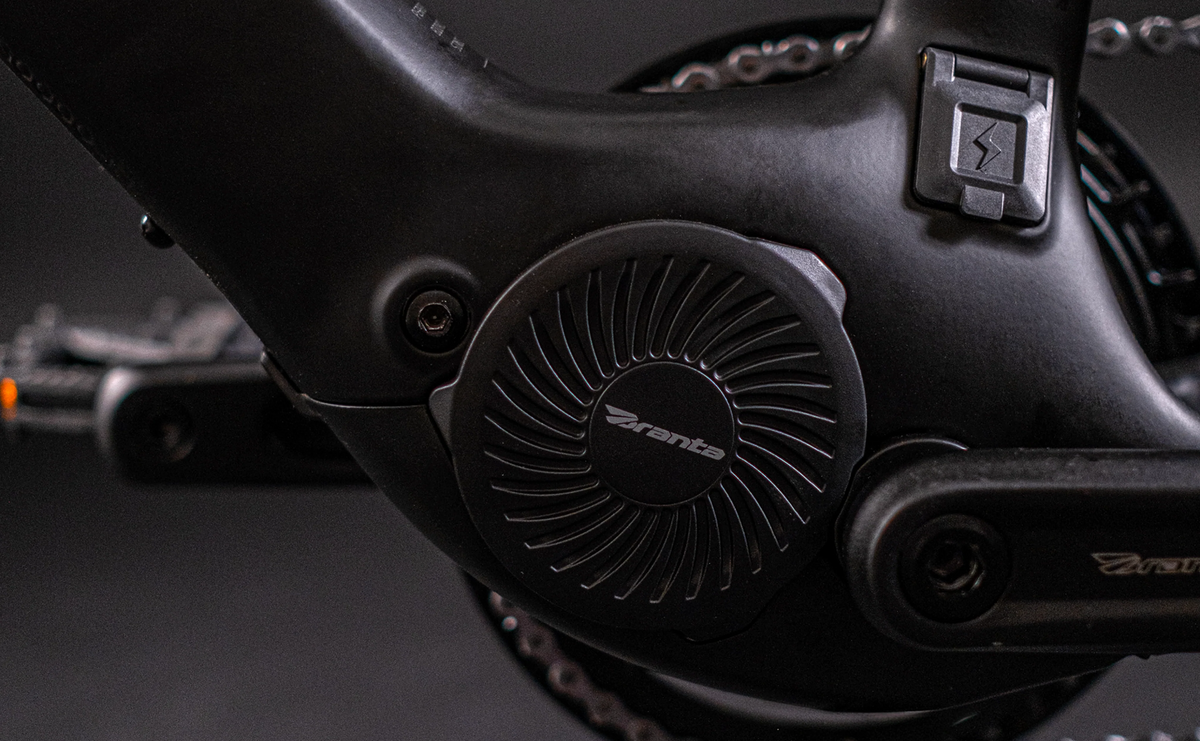

Mid-Drive Integration the Branta Way:

With an in-house mid-drive system supported by Branta platform integration, the SP5+ is built to keep the bike clean, capable and easy to maintain, ride after ride!

Fitness-First Electric, Smarter by Design:

With Find My and app-powered controls, SP5+ brings modern e-bike intelligence to a lightweight sporty platform - unlocking personalization, firmware updates, and ride tracking without adding difficulties.

Features

  • Class 2 throttle + Applie Find My anti-theft technology
  • Shimano CUES 9 Speed Drivetrain

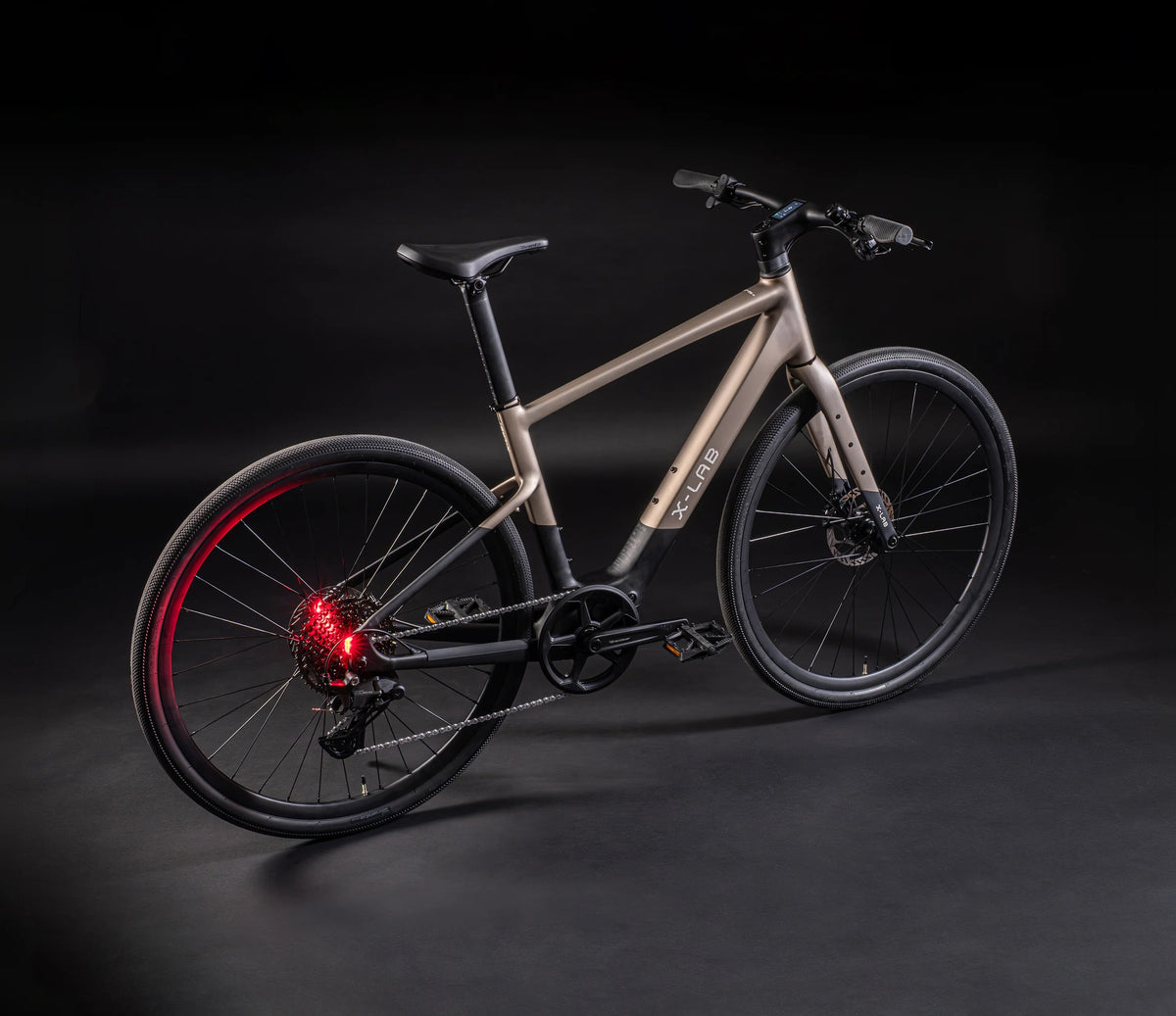

  • Integrated rear tail light and brake light
  • Sport setup: 700C gravel all-terrain tyres and fitness riding position

Specifications

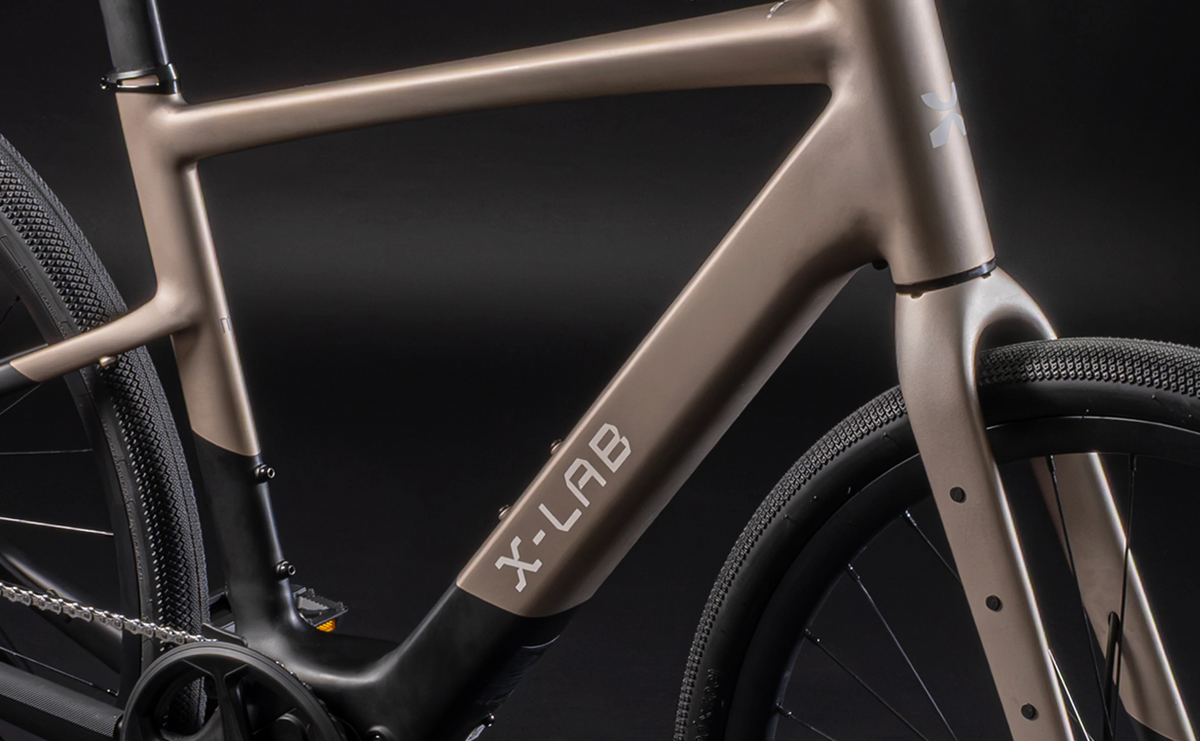

Frame
XDS X6 Alloy Frame, UDH Compatible
Fork
XDS Carbon Fork, 100x12mm Thru-axle

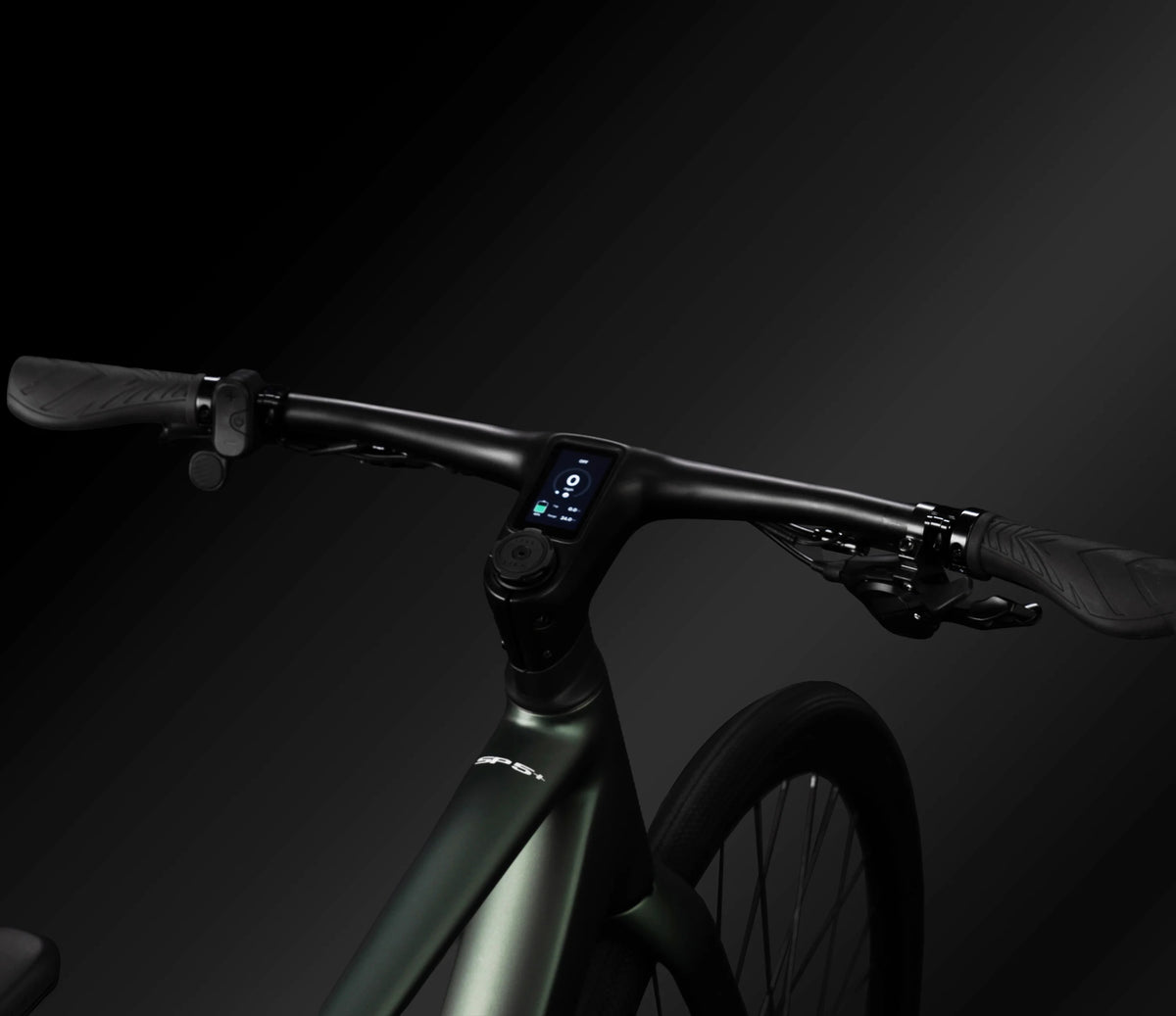

Handlebar/Stem
Branta Alloy Integrated
w/ Display & Front Light, 680mm Width, 90mm Length, 6 Degree Rise, 9 Degree Backsweep
Seat Post
XDS Alloy Seatpost, Aero Shape, 350mm Length
Rear Derailleur
Shimano Cues RD-U4000, 9-Speed
Shifter
Shimano Cues 9-Speed
Brakes
Branta EC215D Hydraulic E-Bike Brake
w/ Cutoff Switch, 3 Finger Lever, 2 Piston Caliper
Cassette
Shimano CS-LG300 11-46T, 9-Speed
Crankset
Branta Alloy Crankset, 46T, Narrow-wide Teeth
Motor
XDS Mid-drive X800 Motor
250 Watt Continuous Rated Power, 400 Watt Peak Power, 85Nm Peak Torque, Dual-sided Torque Sensor
Battery
XDS Rechargeable Li-ion Battery
339Wh, LG Battery Cells, 3A Charger (0-100% 3hr 15min)
Lights
Integrated F+R Lights (+ Brake Lights)
Speed
Pedal-assist and Throttle, Class 2 20mph (Unlock to Class 3 via the X-Lab Bikes Mobile App)
Range
Ride up to 70 km on a single charge
Testing and Compliance
UL2271 and UL2849 Certified, Ingress Ratings
Complete Bike IP54, Battery IPX7, Motor and Other Electronics IPX6
Load Capacity
Max Load 120kg
Connectivityl
Apple Find My Anti-Theft Technology, Bluetooth, OTA Updates
Rotors
Branta Z8, F:160mm R:160mm
Chain
KMC E-GLIDE-S
Wheelset
Branta Alloy E-Bike Wheelset
Tyres
Branta R240, 700x40C, 30TPI
Max Tyre Clearance: 45C w/ Full-Wrapped Fender
Saddle
Branta SRX+
Phone Holder
Quad Lock Mount
Weight
16.79kg

*Continuous Product Improvement Innovation never stands still. As part of our commitment to building the best possible bicycles, X-LAB reserves the right to update specifications, components, colors, and other product details at any time without notice. We make every effort to keep our published specifications current, but minor variations may occur between production batches. Please contact your local X-LAB dealer or Customer Support if you would like to confirm the latest specifications before purchase.
