FRAMESET
-
FrameSynapse Carbon, SmartSense enabled, Proportional Response size-specific design, BSA threaded BB, flat mount brake, 12x142mm thru-axle, thru-tube internal cable routing with Switch Plate, removable fender bridge, hidden rack/fender mounts
-
ForkSynapse Carbon, integrated crown race, Proportional Response size-specific design, 12x100mm thru-axle, thru-tube internal routing, hidden fender mounts
-
HeadsetSynapse Sealed Bearing, integrated, 1-1/4"-1-1/8"
DRIVETRAIN
-

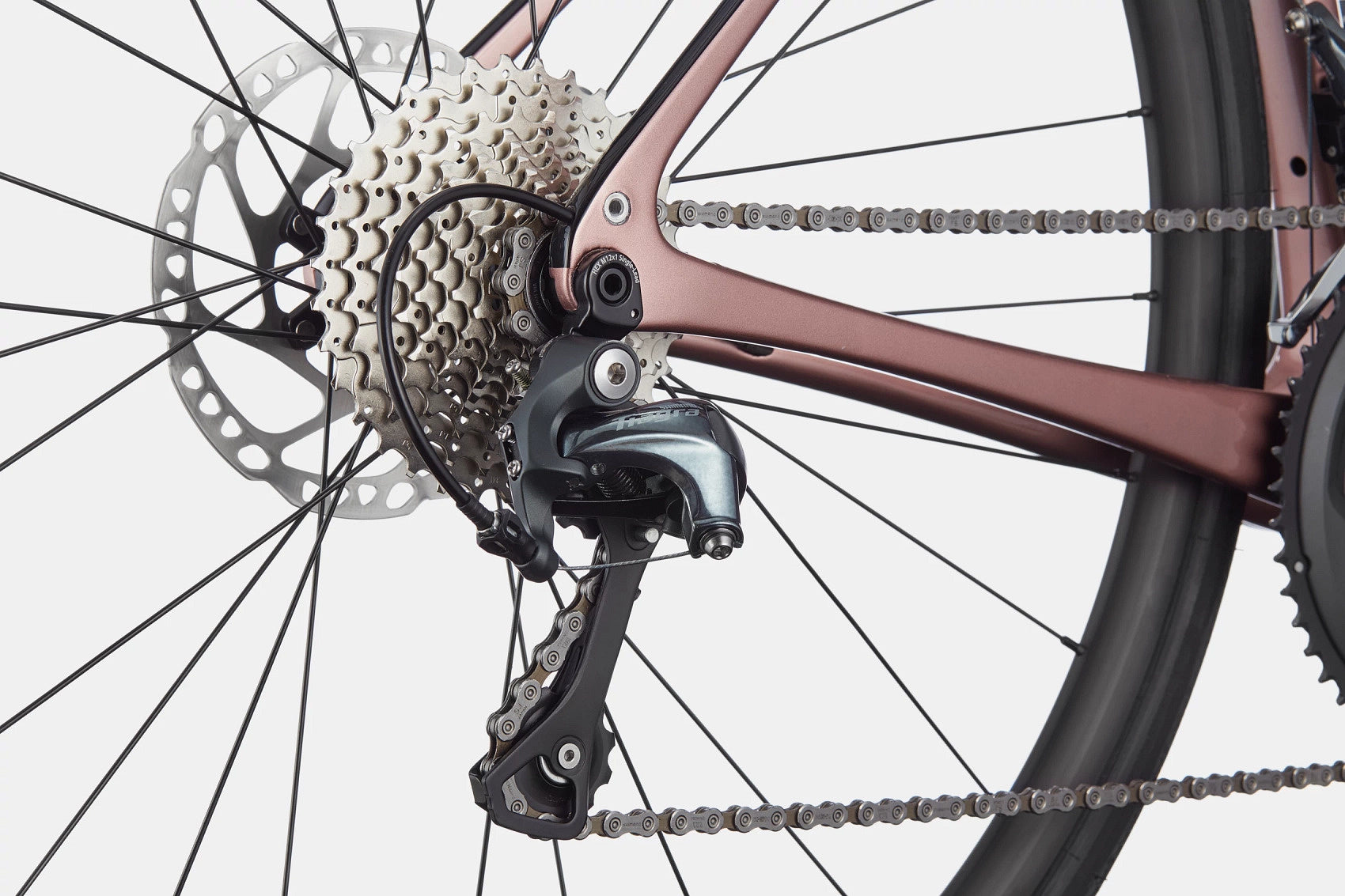

Rear DerailleurShimano Tiagra GS
-
Front DerailleurShimano Tiagra, braze-on
-
ShiftersShimano Tiagra hydraulic disc, 10-speed
-
ChainShimano HG54, 10-speed
-

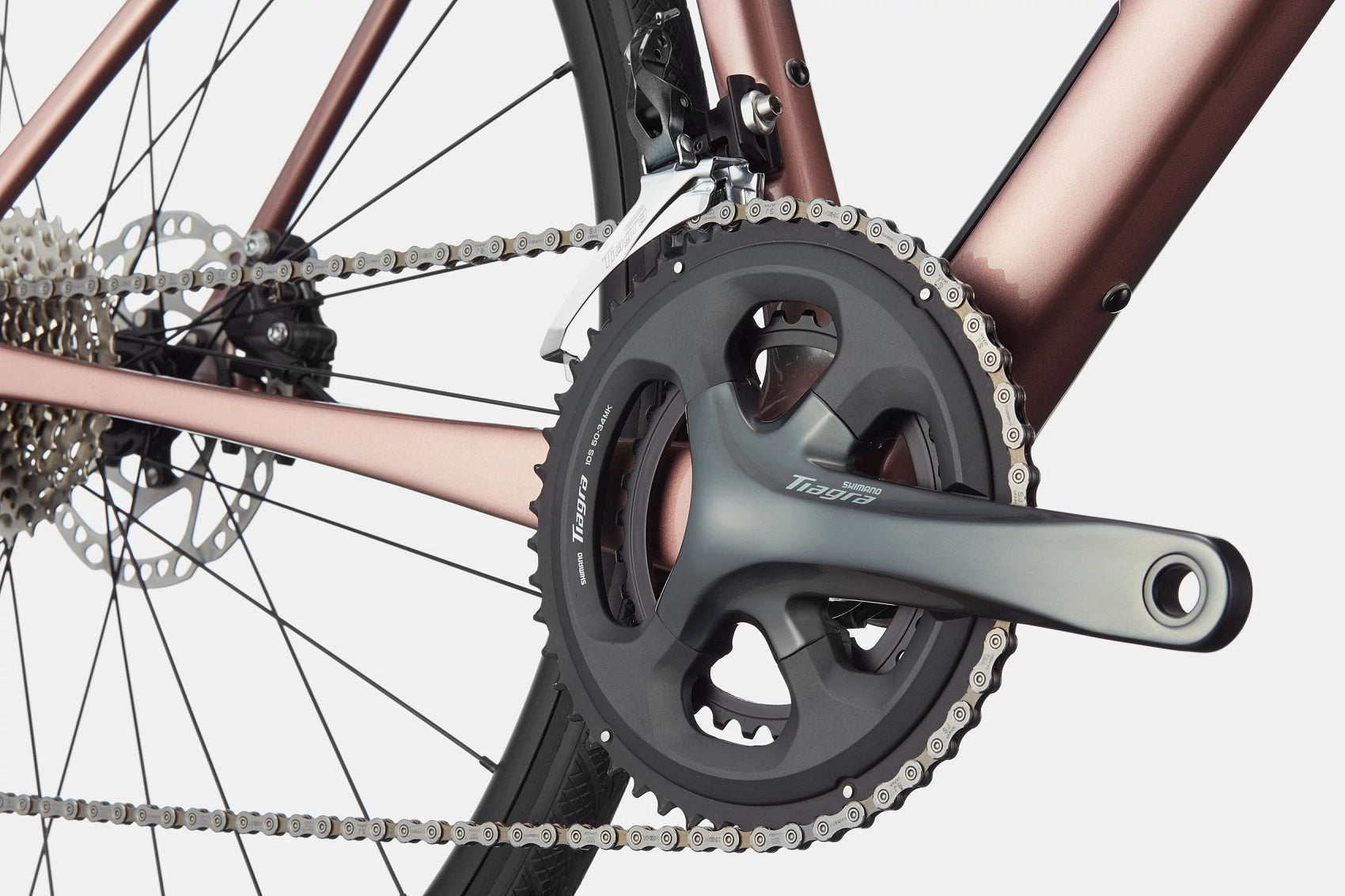

CrankShimano Tiagra, BSA, 50/34
-
Rear CogsShimano Tiagra, 11-34, 10-speed
-
Bottom BracketShimano BSA
BRAKES
-
BrakesShimano Tiagra hydraulic disc, 160/160mm RT64 rotors
-
Brake LeversShimano Tiagra hydraulic
WHEELS
-
RimsRD 3.1, 28h, 21mm IW
-
SpokesStainless Steel, 14g
-
TiresVittoria Zaffiro Pro Reflective, 700 x 30c
-
Tire Size30
-
Wheel Size700c
-
Hubs(F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock
-
Front TireVittoria Zaffiro Pro Reflective, 700 x 30c
-
Rear TireVittoria Zaffiro Pro Reflective, 700 x 30c
COMPONENTS
-

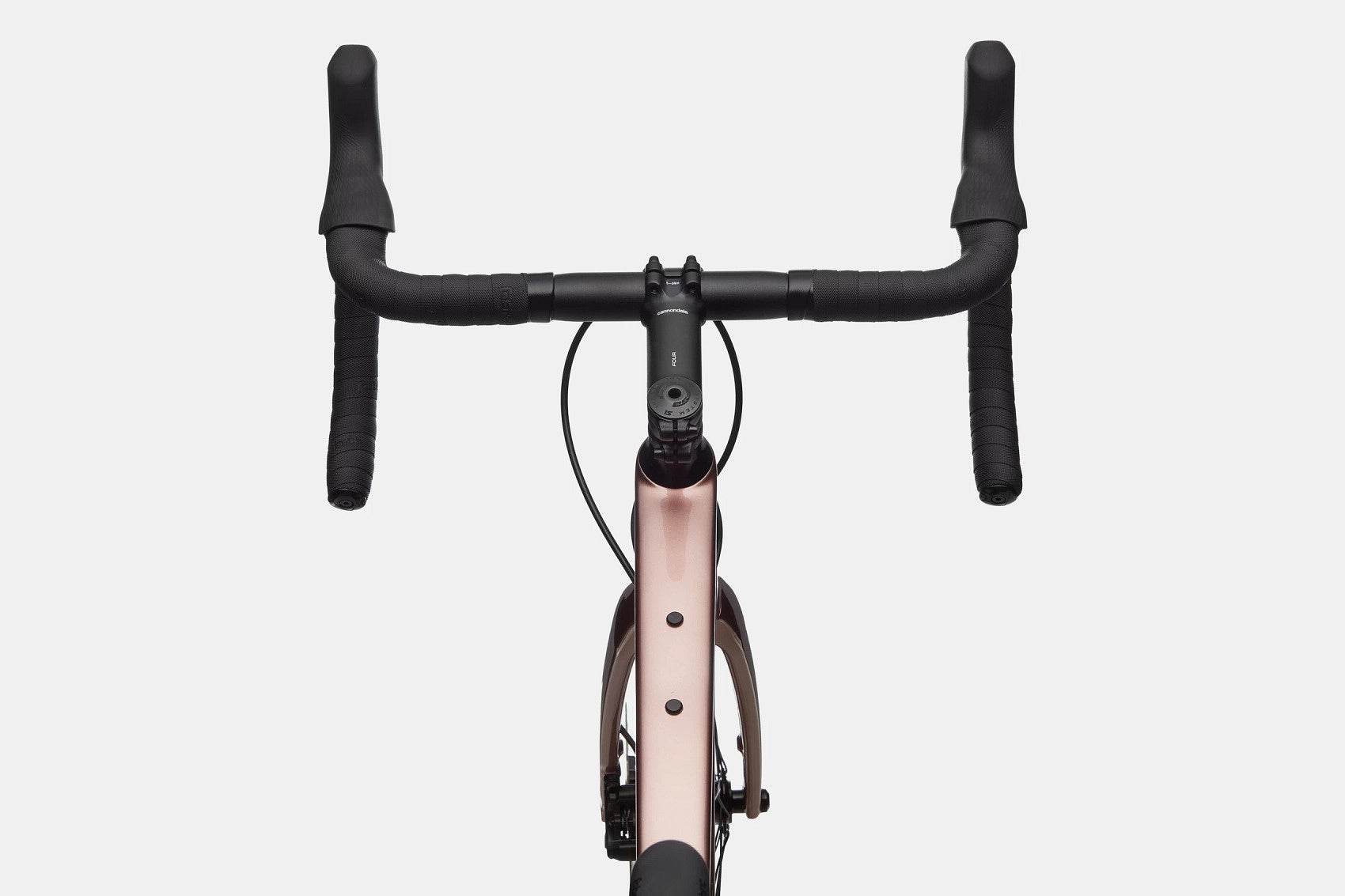

HandlebarCannondale 3, 6061 Alloy, Compact
-
StemCannondale 3, 6061 Alloy, 31.8, 7°
-
GripsFabric Knurl Bar Tape
-
SaddleFizik Aliante Delta, S-alloy rails
-
SeatpostCannondale 3, 6061 Alloy, 27.2 x 350mm (48-56), 400mm (58-61)
CONNECTIVITY
-
Wheel SensorCannondale Wheel Sensor
EXTRA
-
Extra 1Trainer Compatible Thru-Axle
WEIGHT: 9.5 KG (56CM) - BIKE AND FRAME WEIGHTS MAY VARY IN FINAL PRODUCTION.
PLEASE NOTE THAT, BASED ON COMPONENT AVAILABILITY AND OTHER FACTORS, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
