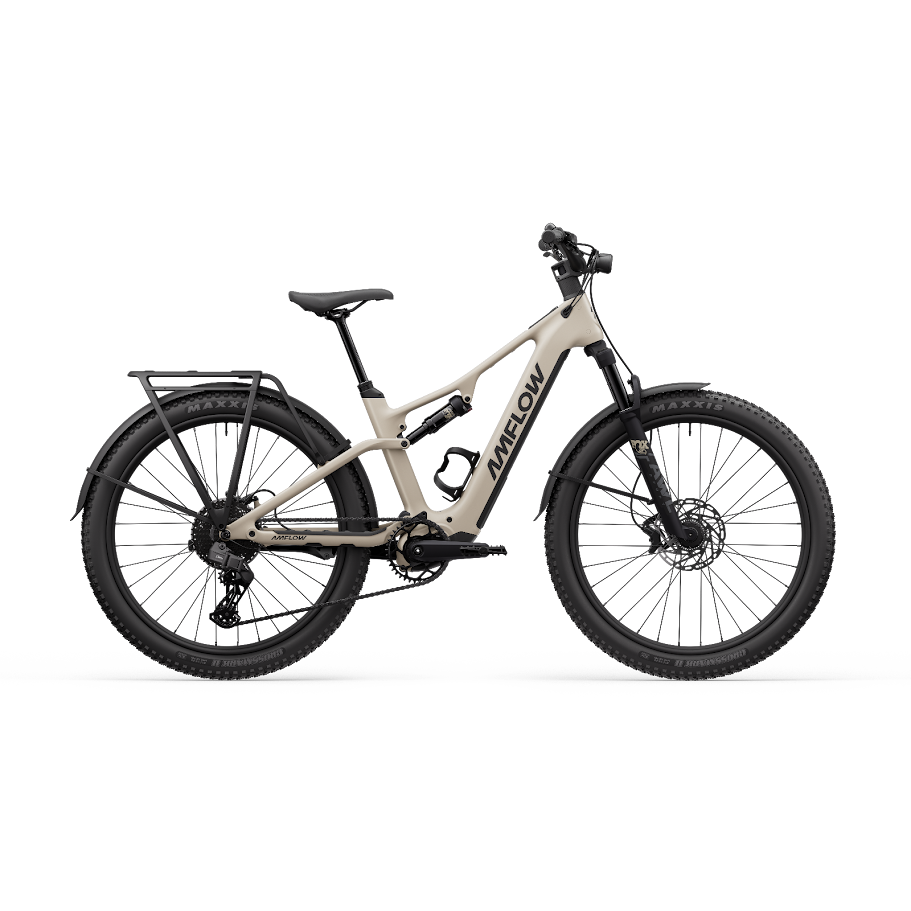

Beige Amflow electric bike with black components on a white background

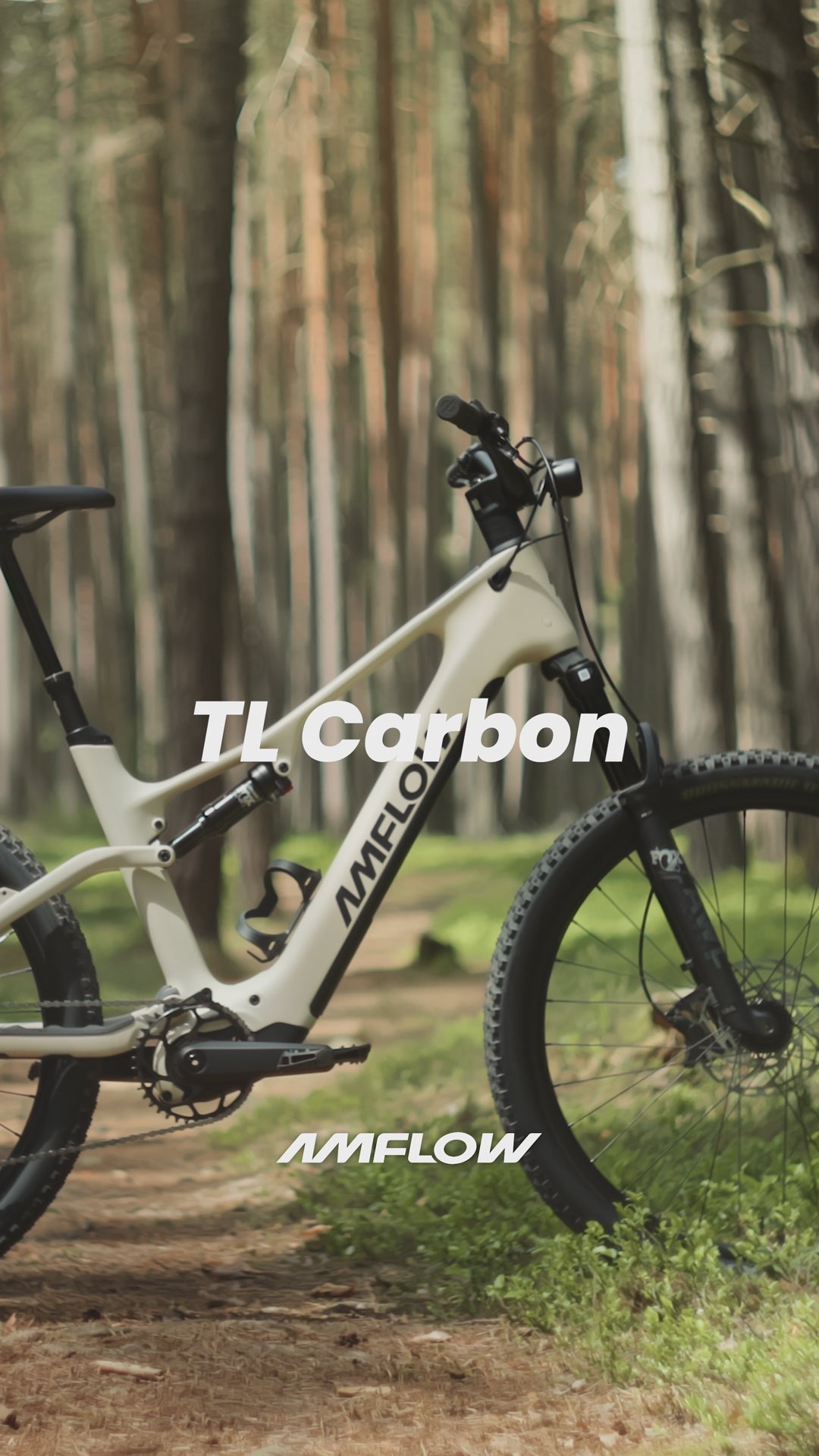

A video about the AMFLOW TL Carbon Dual Suspension Mountain Bike
AMFLOW

TL Carbon Dual Suspension E-Bike

Sale price$5,599.00 AUD
Sold out
Included Service Plan

Every bike we sell includes a 3-year service plan!
Learn More

Assembled & Ready to Ride

All our bikes are assembled by a professional and thoroughly checked, ready to ride!

The NEW AMFLOW TL Carbon Dual Suspension MTB is the ultimate touring machine! Explore anywhere and have fun! Read More
Color: Silica Beige
Size: Small/Medium

Size

Enquire Now

Interested in the AMFLOW TL Carbon Dual Suspension E-Bike? Get in touch to find out more!

Pickup currently unavailable at Bike Force Joondalup

Beige Amflow electric bike with black components on a white background

TL Carbon Dual Suspension E-Bike

Silica Beige / Small/Medium

Bike Force Joondalup

Pickup currently unavailable

Unit 8/162 Winton Road
Joondalup WA 6027
Australia

+6193011050

Buy Now, Pay Later.

Payment Option 1 Payment Option 2
Dual Suspension AMFLOW Mountain bike against a mountainous landscape with a lake.

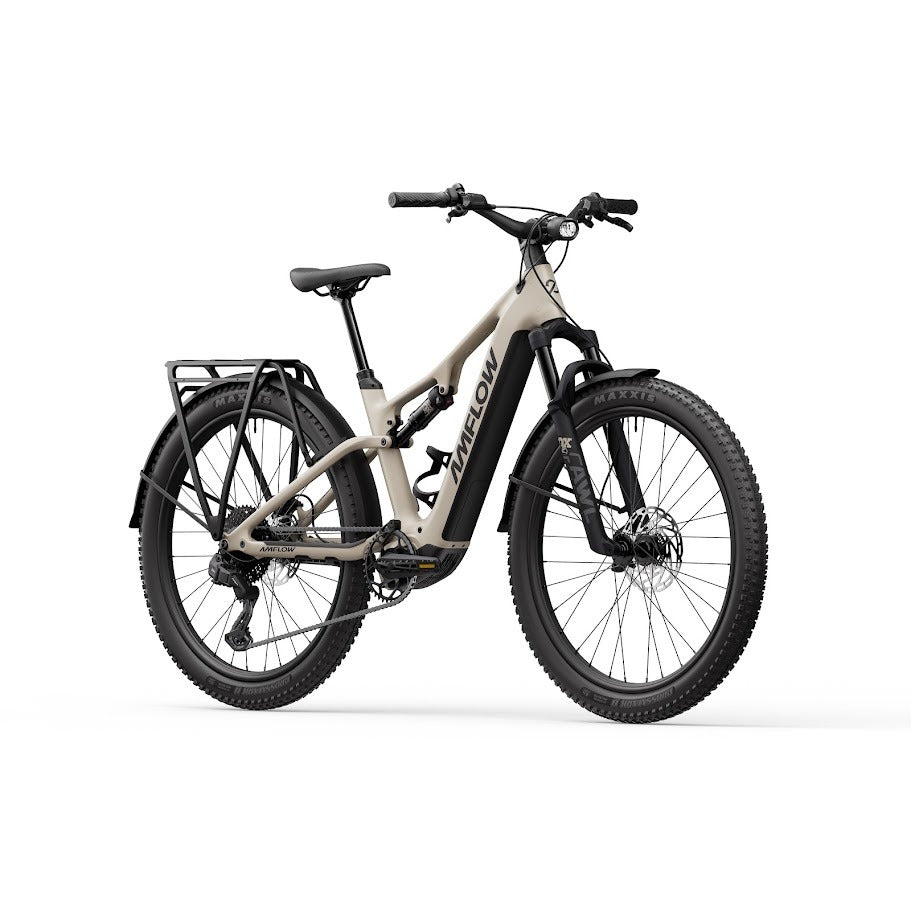

Electric AMFLOW bike with a white frame and black tyres on a white background

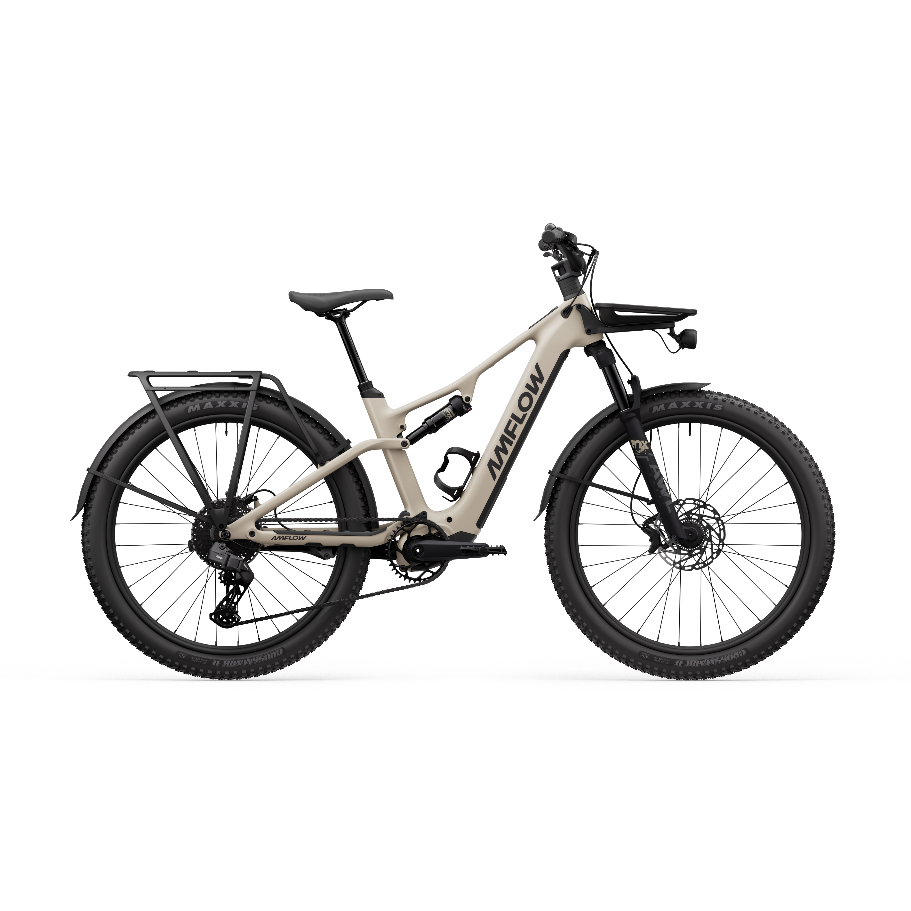

Beige AMFLOW electric bike with black components on a white background
Two cyclists riding along a scenic road by the water.
Two mountain bikers riding Amflow E-Bikes on a rocky trail with a scenic background
Person sitting on an Amflow Mountain bike by a marina at sunset
Person riding an Amflow mountain bike on a trail with mountains in the background
Two people riding Amflow bicycles on a gravel path with greenery in the background
Two people riding electric bikes on a scenic road with mountains in the background

Description

The TL Carbon Dual Suspension E-Bike is built for complete versatility. It can be the ultimate touring bike with all the mounts needed to load up your bike and go on an adventure! It is super strong, taking up to 200kg of total weight. The torque will give you the power to handle any steep climbs or technical singletrack. Adjust your seat height on the fly and the dropper is useful for any tricky drop offs you might encounter. It is also perfectly suited for any urban adventures. . The frame weighs a mere 2.9kgs. It has modular mounting and effortless saddle height adjustment. Convenient to get on and off and easily adjustable even while riding. It has up to a whopping 172km range with standard battery

Features

  • 2.9kg Full Carbon Frame - agile and durable
  • Fox full suspension - 120mm travel front 105mm rear
  •  Avinox M2 Drive Unit 125 Nm Torque
  • Traction Control System
  • Climb without downshifting
  • More grip on wet surfaces
  • Loaded touring
  • 800WH Standard Battery
  • 480WH Secondary Battery
  • Can carry 200kg total weight

Specifications

Frameset

Frame
Amflow TL Carbon Frame
Full Suspension, Removable Battery, Compatible With 27.5″ and 29″ Front and Rear Wheels
Colour
Silica Beige
Compatibility
Compatible With Front and Rear Mudguards Compatible With Rear Rack and Front Rack Compatible With Bike Trailers (Requires Trailer Thru-Axle)

Drive System

Drive Unit
Avinox M2 Drive Unit: Nominal 110N·m, Peak 125N·m
Screen
Avinox DPC100, 2-inch OLED Control Display
Battery
Avinox RS800 Battery (Removable)
Wireless Controllers
Avinox Wireless Controller × 2 (One on each side of the handlebar)
Charger
Avinox 4A Charger, 168W Output

Suspension

Rear Shock
FOX FLOAT Rhythm, LSR adjustment, Amflow TL tuned, 190×45mm
Fork
FOX AWL Sport
120mm, RAIL 2.0 damper, LSR adjustment, 15×110mm Kabolt, 44mm offset

Drivetrain

Rear Derailleur
TRP E.A.S.I. RD-T7010E-L, 10/11-Speed, Electronic Rear Derailleur
Cassette
CS-M5243, 10-Speed, 11-43T
Chainring
Avinox Direct Mount Chainring (38T)
Chain
Avinox eGlide T Chain (10S/11S, 118 Links)
Crankset
Avinox SL Crankset (S/M: 155mm; L/XL: 160mm)

Brakeset

Brakes
Tektro TKD173 Hydraulic Disc Brakes, 4-Piston Caliper, Customized for Amflow Tektro TR180-61E, Ø180mm, 2.3mm thickness, with integrated tonewheel for Avinox

Wheelset

Front Wheel
Amflow HTA-25 Front Wheel (27.5″)
Tyre
Maxxis 27.5×2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI
Rim
Alloy, 27.5″, 25mm Inner Width, 32H
Hub
Alloy, 15×110mm Thru-Axle, 32H, 6-bolt
Rear Wheel
Amflow HTA-25 Rear Wheel (27.5″)
Tyre
27.5×2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI
Rim
Alloy, 27.5″, 25mm Inner Width, 32H
Hub
Alloy, 12×148mm Thru-Axle, 32H, 6-bolt, 6 Pawls, HG Freehub

Components

Handlebar
Amflow Touring Handlebar
S/M Size Frame: 720mm Width, 35mm Diameter, 93mm Rise L/XL Size Frame: 740mm Width, 35mm Diameter, 93mm Rise
Grips
Amflow Enduro Grip 2
Stem
Amflow Touring Bike Split Stem
(Clamping Diameter: 35mm, Length: 35mm, Angle: 0°)
Saddle
Amflow Touring Saddle
Dropper Post
Amflow TA Dropper Post, 31.6mm (Adjustable Travel: 0/-10/-20mm)
S/M Size Frame: 150mm L/XL Size Frame: 170mm
Accessories
Avinox Front Light
Amflow Touring Rear Rack, Compatible With MIK HD Standard Amflow Elite MTB Pedals Amflow Bottle Cage Front Mudguard, Rear Mudguard Amflow Touring Kickstand (348mm) Amflow Touring Bike Split Stem (Clamping Diameter: 35mm, Length: 35mm, Angle: 0°) Sate-lite M8 Rear Light With Integrated Reflector Dropper Post Travel Reducing Spacer Two Keys for Removable Battery Torque Wrench
