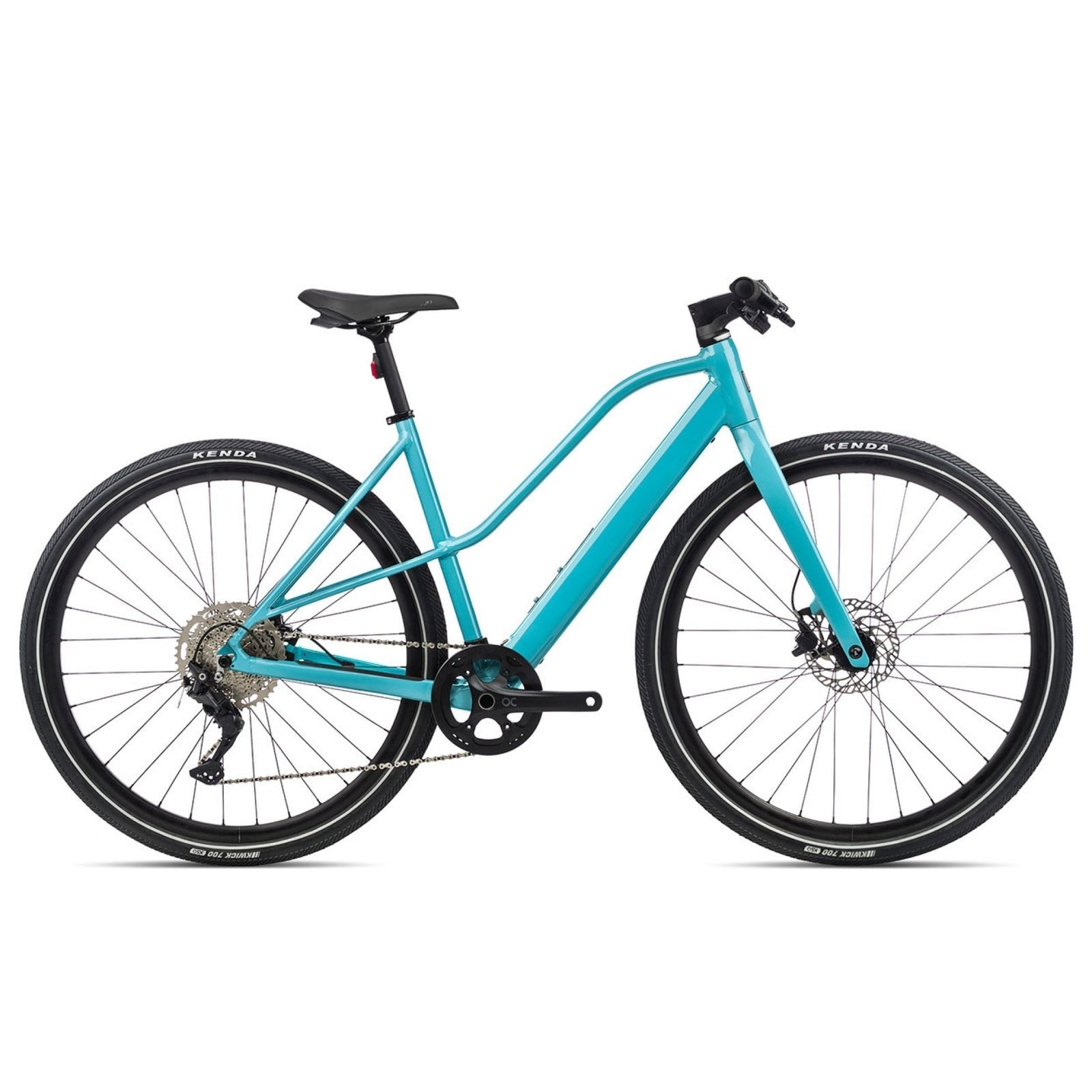

Vibe Mid H30 Urban E-Bike Blue Medium

Sale price$4,799.00 AUD
Only 1 unit left

Color: Blue
Size: Medium

Size

Pickup available at Bike Force Joondalup

Usually ready in 24 hours

Vibe Mid H30 Urban E-Bike Blue Medium

Vibe Mid H30 Urban E-Bike Blue Medium

Blue / Medium

Bike Force Joondalup

Pickup available, usually ready in 24 hours

Unit 8/162 Winton Road
Joondalup WA 6027
Australia

+6193011050

Description

The Orbea Vibe H30 Mid Drive Urban e-Bike is a sophisticated machine that is perfect for urban transportation. The bike is sleek, fun and functional. It is a lightweight bike that can be easily maneuvered into your apartment or workplace. It is designed for the fast-paced commuter with a city lifestyle. The motor, battery and integrated electronics system turns this into a sleek, minimalist, neat looking stylish bike. It is focused on both comfort and performance. It allows for a more comfortable upright position, a low bar frame which is easy to mount and dismount and the bike has front and rear lights to keep you safe and visible to other vehicles. The internal cabling gives the bike a clean, neat aesthetically stylish look. It has a small, light, neat battery that doesn't compromise on power.

Vibe has only one external wire connection, allowing the rear wheel to be removed from the bike. This cable is tucked neatly under the chainstay and hidden with a smoothly-integrated cover. The battery access port under the BB is similarly invisible, and the headset cover blends neatly into the top tube. After all, what’s the point of designing a great-riding bike and forgetting the design details?

The heart of Vibe, the rear hub motor is the key to the Enough Energy concept. The sophisticated drive system provides enough smooth and reliable assistance at levels designed to amplify your input as discreetly as possible. And since the motor is at the hub, you’ll experience almost drag-free pedaling when Vibe is not providing a push.

Features

  • X35 System: Ebikemotion X35 Plus. The heart of Vibe, the rear hub motor is the key to the Enough Energy concept. The sophisticated drive system provides enough smooth and reliable assistance at levels designed to amplify your input as discreetly as possible. And since the motor is at the hub, you’ll experience almost drag-free pedaling when Vibe is not providing a push. Vibe’s sophistcated Torque Simulation Algorithm mirrors your power input through the pedals to apply more power when you expect it and conserve energy when you’re spinning easily.
  • Power: 36V 250W
  • Max Torque: 40 N.M
  • Max Speed: 25km/Hr OR 32Km/Hr
  • Pas Sensor: Vibe’s smooth and balanced assist requires an advanced sensor. Blending perfectly with our effort to create a sleek and discrete system, the cassette lock ring is replaced with a PAS sensor that monitors your pedaling input and adjusts power accordingly.

• 40 pulses per second.
• Magnetized lock ring sensor.
• Proprietary algorithm & electronics.

  • X35 Battery:The battery is one of the most noticeable components of an eBike system, so every step has been taken to find the lightest, smallest and most discreet unit. Vibe’s Enough Energy concept provides you enough battery power, not more. It eliminates the need for a bulky, high-output battery that needs to be removed from the bike.
  • Forged BB and Dropouts: Designing a new lightweight bottom bracket shell for Vibe allowed us to dramatically improve stiffness, create easier battery access and more room for internal cable routing, all while increasing clearance for tires and mudguards. Not to mention it looks really great, too.The forged dropouts combine mounting points for fenders and rack, and provide plenty of stiffness and room for the hub motor axle nuts.
  • Vibe Carbon Fork: The carbon layup and shaping of the Vibe fork offes the best combination of shock absorption, tire clearance and stiffness. The fork legs sport integrated fender mounts and ample tire clearance for even more versatility.
  • Hydroformed Alluminium: We manipulate the shapes and wall-thickness of our aluminum tubing to increase strength and resistance to unwanted flex. Many of the tubes are butted to save weight in the middle of the tubes, away from the stress of the joints and the weld zones. Using aluminum technologies as advanced as our carbon manufacturing ensures our aluminum bikes are never second-best.
  • Ebikemotion App:Connect your smartphone to the EBikeMotion app and enjoy indepth system information plus ride and training details.
  • Interface: Interface X35
  • IWOC Trio:Vibe’s control center is an attractive and discreet handlebar-mounted device, putting function at your thumb without taking your hands off the handlebar.

• On, Off and light control.
• battery & assist level.
• information by RGB Led.
• Smart & Compact.

  • When added to the Ebikemotion X35 system, the extender charges the bike's main battery and provides an additional 208 W/h to the 248W/h capacity of the internal battery. This brings the system battery size to 450W/h, giving a 70% boost in range.
  • Range Extender: Vibe is intended for long rides, but some days demand more. A bit more time on the bike, a few more meters of climbing. Vibe’s Range Extender fits on your frame’s water bottle mount and gives you enough range to get there and back again.When added to the Ebikemotion X35 system, the extender charges the bike's main battery and provides an additional 208 W/h to the 248W/h capacity of the internal battery. This brings the system battery size to 450W/h, giving a 70% boost in range.
  • Battery: 36V 250W
  • Charging Port: Vibe doesn’t require a multitude of wires, ports or accessories. The CAN (Controller Area Network) BUS port provides a single interface for charging, system diagnosis or attaching the Range Extender.

• Single port for charger and Range Extender
• Coded connection.
• Max. 12a for external battery and 2a for charging.
• System diagnosis via can, computer or bluetooth.
• Integrated weatherproof cover.

Specs

FRAME ORBEA VIBE MID BAR HYDRO 6061 HYDROFORM ALUMINUM 2021, ICR CABLE ROUTING, FORGED BB, 135X9 QR, FLAT MOUNT DISC, 700X45 MAXIMUN TIRE, 1" 1/2 SEMI HEAD SET, 41X86,5 PRESSFIT BB, CARRIER AND FENDERS COMPATIBLE
FORK ORBEA VIBE CARBON FORK, FULL CARBON, 1-1/5, 700X45 MAXIMUN TIRE, FLAT MOUNT DISC MOUNT, THRUE AXLE12X100MM, LONG MUDGUARDS COMPATIBLE.
CRANKSET FORGED ALLOY, 42T, W/CHAINGUARD
HEADSET ACROS ALLOY 1-1/2" INTERNAL CABLE ROUTING
HANDLEBAR ALLOY ,31.8MM, RISE 12MM, 700MM
STEM ALLOY FORGED, -6º, ICR
SHIFTERS SHIMANO DEORE M4100
BRAKES MAGURA MT30 HYDRAULIC DISC EASY ROUTE CONNECTION
CASSETTE SHIMANO CS-M4100 11-46T 10-SPEED
REAR DERAILLEUR SHIMANO DEORE M5120 SGS SHADOW PLUS
CHAIN KMC X10
WHEELS ALLOY, TUBELESS, 700C, 21C, 32H
TYRES KENDA K1052 700X45C REFLECTIVE TYPE+PUNCTURE PROTECTION
PEDALS VP-537 BLACK
SEATPOST ALLOY, 27.2MM, SETBACK 20
SADDLE SELLE ROYAL LIFT 1404 HRN 266X170MM
REAR CARRIER ORBEA VIBE REAR LUGGAGE CARRIER (MAX:15KG)
MUDGUARD CURANA APOLLO 55MM
FRONT POSITION LIGHT FRONT POSITION LIGHT, ON HEAD TUBE, COB LED, ON/OFF, 60 LUMEN, ECE50.
FRONT LIGHT LEZYNE EBIKE POWER STVZO PRO E115 INVERTED POSITION WITH REMOTE 310 LUMENS
REAR LIGHT LEZYNE FENDER STVZO
